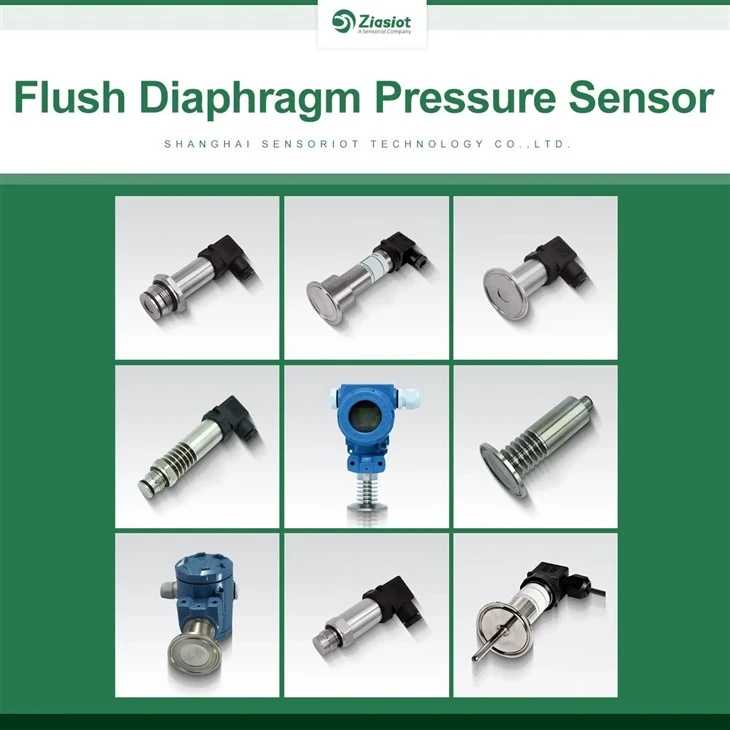

Flush Diaphragm Sillcon Pressure Transmitter

Pressure Range: -1～400 bar;
Accuracy: ±0.25%F.S;
Signal ouput: 4-20mA;
Temp.:-40～80 ℃ ;
Protection grade: IP67

Send Inquiry

Download

Description

Features

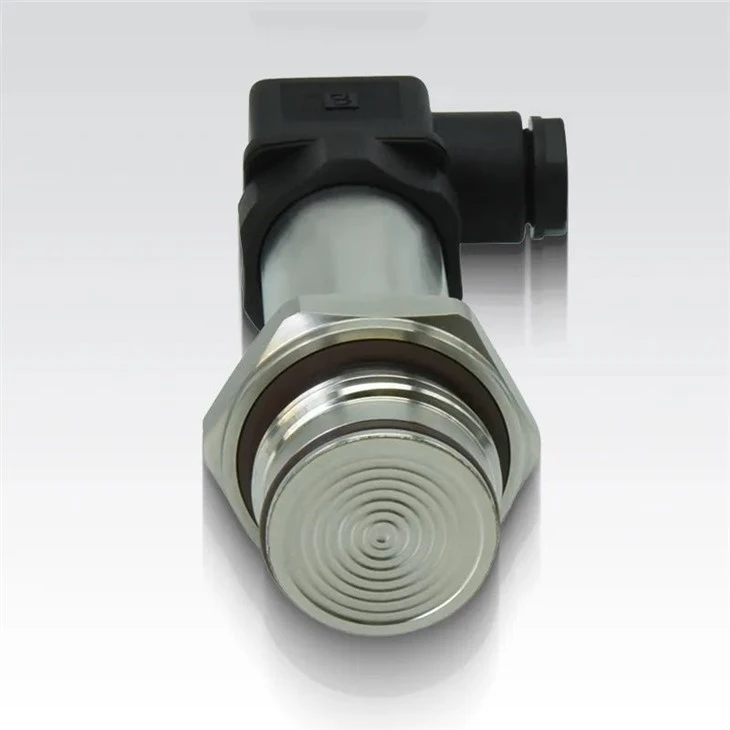

Clean flat isolation diaphragm, in line with international (FDA) 3A health standards;

No pressure holes, no cavity, flat mold design suitable for a variety of viscous media;

Adopt all stainless steel integrated welded structure;

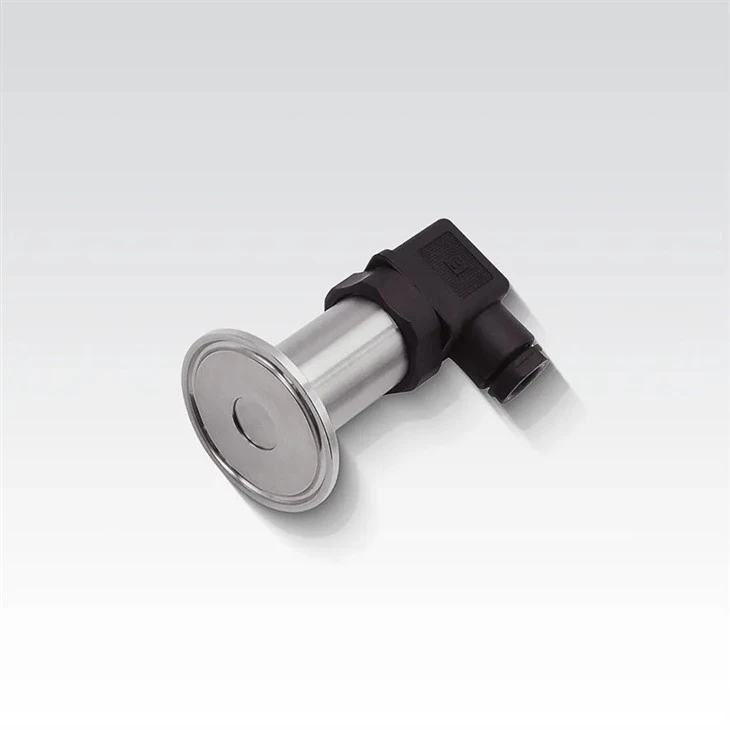

Optional quick-connect chuck φ50.5mm, DN40, DN50 union thread, etc.;

Routine measurement -20~80℃. Optional high temperature type 350℃;

Optional local display, explosion-proof housing, etc.

Application Area

Food and beverage industry
Medical pharmaceutical industry
biotechnology
Pigment, spraying
Chemical industry and paper industry

Product Description

This series of products are made of 316L material. No sanitary dead space between the wetted part and the diaphragm. Suitable for Hygiene industries such as medicine and food.

Parameters

Item	Specification
Measuring range	Relative pressure: maximum 0 ~ 7MPa, minimum 0 ~ 5KPa, customized up to 100MPa
	Absolute pressure: Maximum 0～60MPa; Minimum 0～20KPa
	Negative relative pressure: -1KPa～-0.1MPa
Accuracy class	±0.5%F.S
Temperature effect	Tk≤±0.02%FS/K
Stability	Better than 0.1%FS/year
Location effect	Mounting position does not affect zero point
Permissible temperature	Medium temperature: -20～80℃, -40～200℃
	Ambient temperature: -30～80℃
	Storage temperature: -30～80℃
Protection class	IP64, IP65
Adjustment range	Zero adjustment range ±5%
Adjustment range	Full scale adjustment range ±20%
Power supply	16～32VDC
Output signal	4～20mA DC (analog, two-wire system)
Output signal	1～5V DC (analog, three-wire system)
Electrical Interface	Direct leads, Hirschmann connectors, aviation plugs, customized
Process connection	φ50.5mm chuck, φ64mm chuck, DN40 union, DN50 union, or customized.
