Sanitary Pressure Transmitter
PT210AS Sanitary Flush Diaphragm ressure transmitter for food, medicine, health and wine industry etc
Description
Features
Full flat diaphragm design, no pressure inlet holes or internal cavities
Boasts high precision, robust mechanical strength and excellent anti-contamination performance; customizable dimensional specifications
Supports gauge, absolute and sealed gauge pressure measurement modes
Integrated welded isolation diaphragm structure
IP67 dust and water resistance rating
Diverse electrical connection choices; sanitary surface finish optional with roughness Ra＜0.38μm
Application Area
Bioengineering
Food & beverage production
Pharmaceutical & medical industries
Chemical and papermaking sectors
Coating and spraying processing
Product Description
PT210AS is a high-grade sanitary pressure transmitter equipped with flat flush diaphragm. Its isolation diaphragm is securely welded to the process connection end.
Available in clamp, M21×1.5 threaded and flange mounting forms, this device delivers standard voltage, current and frequency output signals. The flat diaphragm structure effectively prevents medium scaling, crystallization and blockage, making it a prevailing choice for food, pharmaceutical, beverage and related hygienic industrial applications.

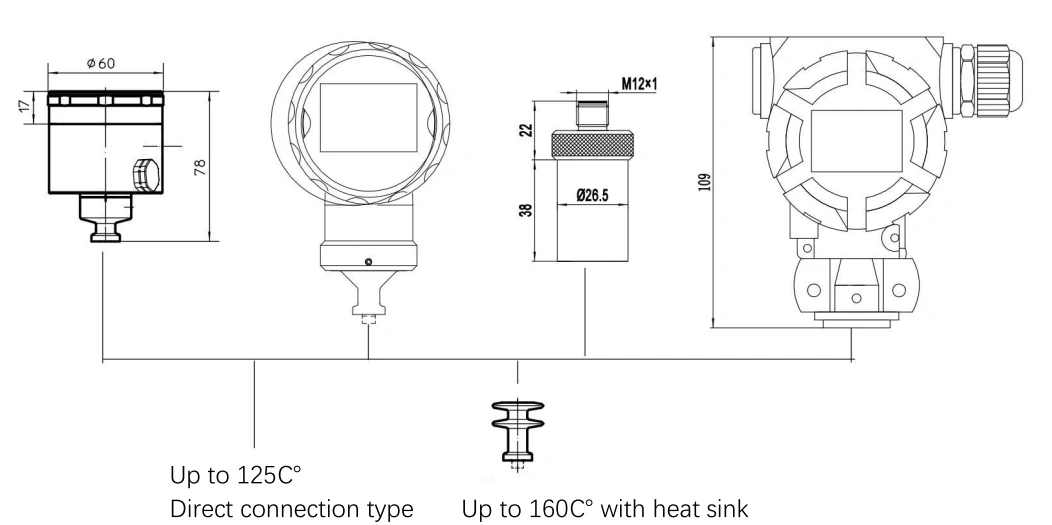

Product Dimension
Video
Parameters
|
Product mix |
Preposition type |
Flat film type/sanitary type |
|
Pressure range |
-1 ~ 0 bar to 0 ~ 400 bar |
-1 ~ 0 bar to 0 ~ 40 bar (specific pressure shall not exceed PN value of pressure interface) |
|
Type of pressure |
Gauge pressure and absolute pressure |
|
|
Measurement accuracy |
Grade 0.5, Grade 0.25, Grade 0.1 |
|
|
Behaviour of electricity |
Two wire system |
|
|
Output signal |
(4～20)mA |
|
|
Power supply |
12～30Vdc |
|
|
Electrical connection |
M12x 1(4-pin),Hirschmann,water-proof connecter | |
|
Ambient temperature |
(-40～80)℃ |
|
|
Working temperature |
Direct connection type:(-20～125)℃,Heat sink type:(-20～160)℃, |
|
|
The protection grades |
IP67 |
|
| Process connection | G1/2,G3/4,G1,M20X1.5 etc | |
