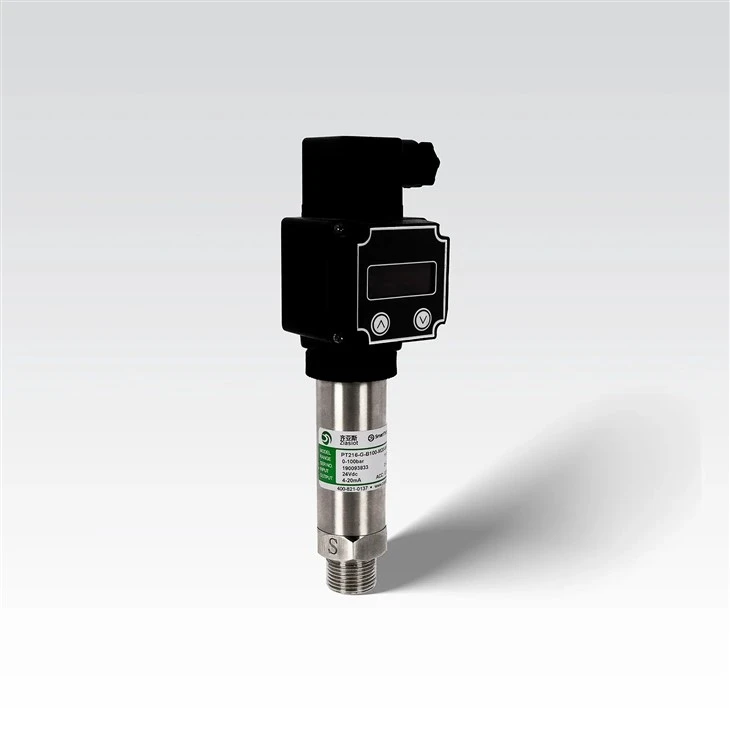

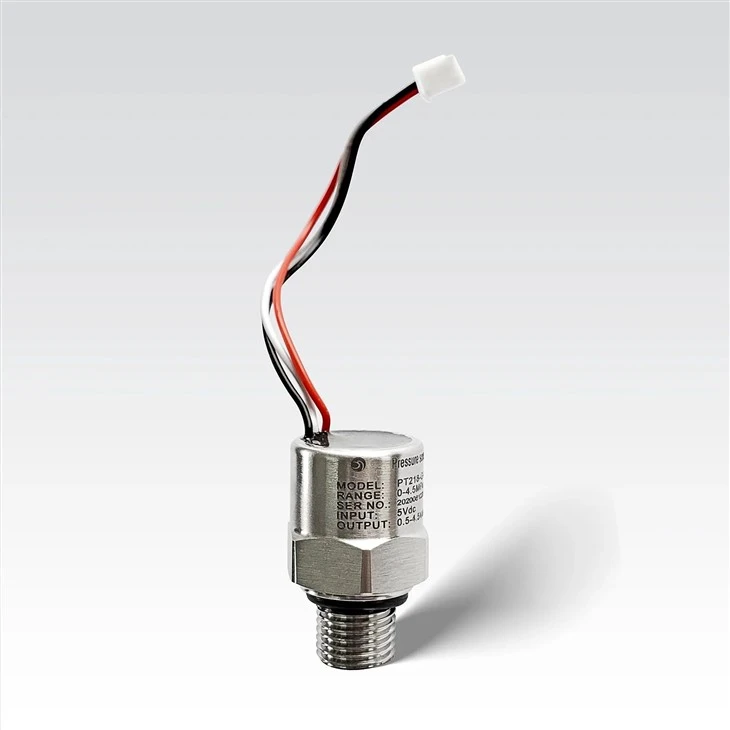

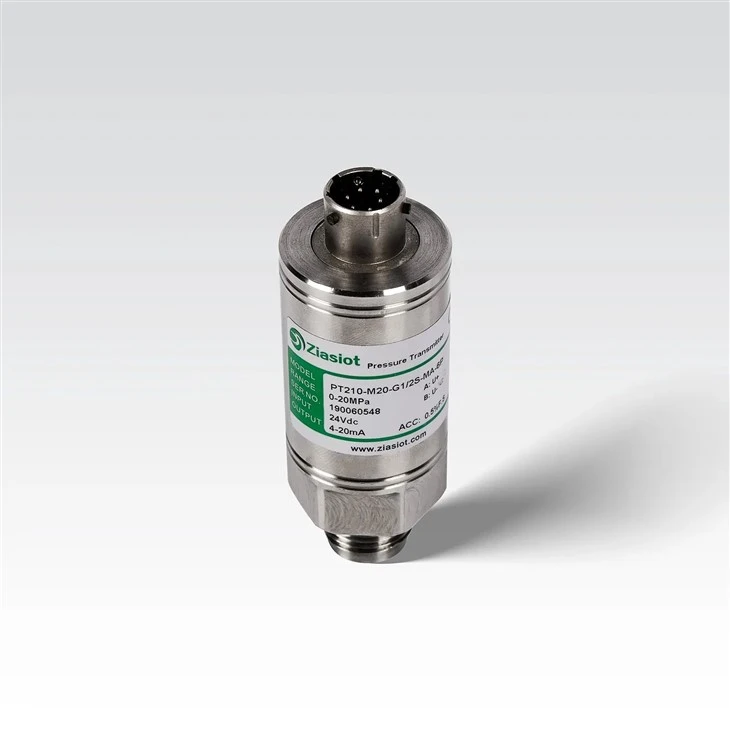

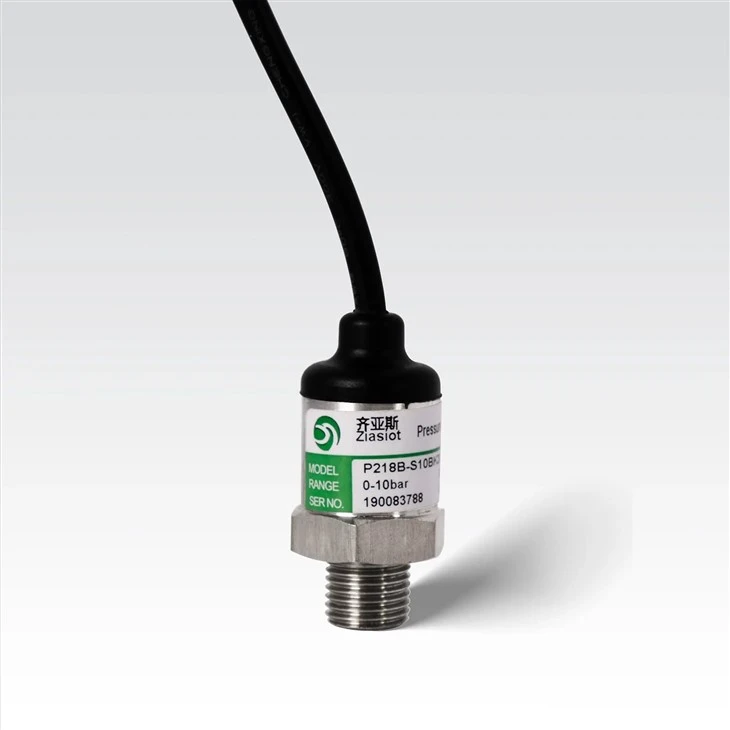

Standard Silicon Pressure Transmitter
Pressure Range: （-100～0）kPa to （0～60）MPa ;
Accuracy: 0.25%F.S/0.5%F.S ;
Signal ouput: 4-20mA/0～10V/0-5V/0.5-4.5V;
Temp.:-20～85 ℃ ;
Protection: IP65;
Description
Features
The measurement accuracy is better than 0.5 level.
Compact stainless steel housing package
Protection level IP65
Multiple electrical connection options
Application Area
Hydraulic and pneumatic control
construction machinery
Light industry, machinery and metallurgy
Industrial process and control
Product Description
PT216 is designed and manufactured with high precision diffused silicon pressure core and precision compensation technology,It has the characteristics of wide measuring range, high precision and compact design, and is suitable for precise measurement and control of liquid and gas pressures in various fields.
Parameter
|
Pressure range |
(-100～0)kPa to (0～60)MPa |
|||
|
Type of pressure |
Gauge pressure and absolute pressure |
|||
|
Measurement accuracy |
0.25%F.S/0.5%F.S |
|||
|
Behaviour of electricity |
Two wire system |
Three-wire system 0 ~ 10v |
three-wire system |
three-wire system |
|
Output signal |
(4～20)mA |
(0～10)V |
(0～5)V |
(0.5～4.5)V |
|
Power supply |
6.5～32Vdc |
12～32Vdc |
10～32Vdc |
5Vdc |
|
Load resistance |
＜(U-6.5)/0.02 |
＞20k |
＞20k |
＞20k |
|
Electrical connection |
M12 connector, hessman, PACK connector, waterproof connector |
|||
|
Overload pressure |
1.5 times rated pressure |
|||
|
Working temperature |
(-20～80)℃ |
|||
|
The protection grades |
IP65 |
|||
|
Response rate |
Overload pressure≤10msec |
|||
|
Long term stability |
0.2%FS/year |
|||
