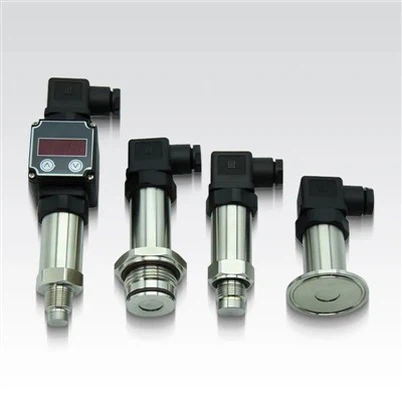

Sanitary Flat-Diaphragm Digital Pressure Transmitter
Pressure Range: -1～400 bar;
Accuracy: ±0.25%F.S;
Signal ouput: 4-20mA;
Temp.:-40～80 ℃ ;
Protection grade: IP68
Description
Features
Clean flat isolation diaphragm, in line with international (FDA) 3A health standards;
No pressure holes, no cavity, flat mold design suitable for a variety of viscous media;
Adopt all stainless steel integrated welded structure;
Optional quick-connect chuck φ50.5mm, DN40, DN50 union thread, etc.;
Routine measurement -20~80℃. Optional high temperature type 350℃;
Optional local display, explosion-proof housing, etc.
Application Area
Sanitary Flat-Diaphragm Digital Pressure Transmitters are high-precision, high-reliability sensors used to measure and transmit pressure changes in hygienic environments. It is widely used in medicine, food, chemical industry and other fields, such as real-time monitoring of drug production processes and equipment pressure changes, detection of pressure conditions during food processing and packaging, monitoring of chemical reaction equipment pressure, and drug delivery and storage.
Product Description
The Ziasiot® PT216WS sanitary pressure transducer/transmitter combines proven thin film technology with diaphragm seal expertise. Satisfying stringent requirements for cleanliness, this model is an ideal choice for any sanitary application.
This series of products is diffused silicon pressure core as sensitive element and 316L stainless steel diaphragm isolation.This series of products has the characteristics of stainless steel welded structure, high precision, non-cavity corrugated flat film, wide measuring range and field display. Widely used in food, medicine and other health industries or fluid pressure measurement and control with particles.
Dimension
Parameters
|
Product mix |
Preposition type |
Flat film type/sanitary type |
|
Pressure range |
-1 ~ 0 bar to 0 ~ 400 bar |
-1 ~ 0 bar to 0 ~ 40 bar (specific pressure shall not exceed PN value of pressure interface) |
|
Type of pressure |
Gauge pressure and absolute pressure |
|
|
Measurement accuracy |
Grade 0.5, Grade 0.25, Grade 0.1 |
|
|
Behaviour of electricity |
Two wire system |
|
|
Output signal |
(4～20)mA |
|
|
Power supply |
12～30Vdc |
|
|
Load resistance |
＜(U-12)/0.02 |
|
|
electrical connection |
M12 connector, hessman, waterproof joint |
|
|
Ambient temperature |
(-40～80)℃ |
|
|
Working temperature |
Direct connection type:(-20～125)℃,Heat sink type:(-20～160)℃, |
|
|
The protection grades |
IP67 |
|
Wetted Part
E-Connection
Order Code
