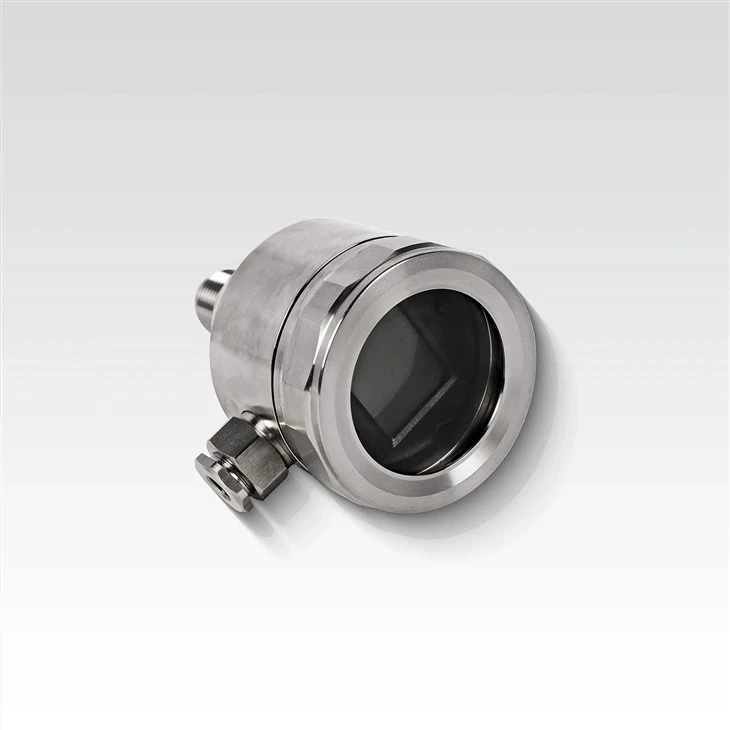

Explosion Proof Digital Silicon Pressure Transmitter
Pressure Range: -100～40MPa ;
Accuracy: ±0.25%F.S;
Signal ouput: 4-20mA;
Temp.:-20～80 ℃ ;
Safe grade: ExiaⅡCT4
Description
Features
The measurement accuracy is better than 0.5 level
4 ~ 20ma output signal
Protection level IP65
Selection of multiple thread pressure interfaces
Intrinsically safe type
Application Area
Petrochemical and natural gas control system
drilling platform
Measurement and control of explosion-proof industrial process
Product Description
This series of products are intrinsically safe pressure transmitters, which adopt imported diffused silicon core as components, and have strong earthquake resistance, long-term stability and various specifications and parameters.
Technical Parameters
| Pressure range | (-100 ~ 0) kPa to (0 ~ 40) MPa | |||
| Type of pressure | Gauge pressure and absolute pressure | |||
| measurement accuracy | Class 0.5, class 0.25 | |||
| output signal | (4～20)mA | |||
| Power supply | 12～30Vdc | |||
| electrical connection | Direct outgoing line | |||
| Overload pressure | 1.5 times rated pressure | |||
| Working temperature | (-20～80)℃ | |||
| the protection grades | IP65 | |||
| Intrinsically safe grade | ExiaⅡCT4 | |||
| Long term stability | 0.2%FS/year | |||
