High Temperature Pressure Transmitter

PT216HT High temperature pressure transmitter sensor -40~500 for hot Oil Gas Steam Boiler,etc.

Description

Product Description

In order to provide stability under 300°C, the PT216HT series High Temperature Pressure Transmitter uses an imported thermo stability detecting element. Additionally, it employs cool lasing technology for welding, effectively preventing heat conduction by incorporating cooling ribs between the electrical circuit of the amplifier and the pressure sensor chips.

High-performance silicon piezoresistive pressure-filling cores are used in pressure-sensitive cores. The sensor's millivolt signal is transformed by the internal ASIC into a standard voltage, current, or frequency signal that can be immediately attached to a PLC, control device, intelligent instrument, or computer interface card. Transmission over long distances is possible using the current output mode. It can function in corrosive environments, is lightweight, compact, and has a stainless steel sealing structure. The product is easy to install and has high anti-vibration and anti-impact performance.

Products Parameters

Mainly technical parameters
Model	PT216HT
Power supply	24VDC
Output single	4~20mA,1~5V,0~10V,RS485
Measuring range	-1~0bar; 0~400 bar(-100~0kPa; 0~40MPa)

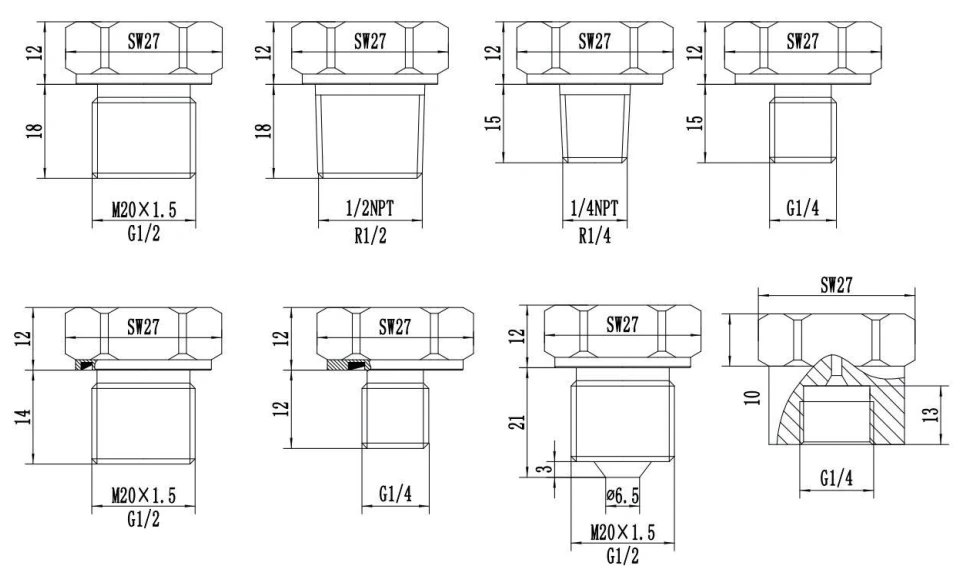

Process connection	G1/4,G1/2,1/4NPT,1/2NPT,M20x1.5,R1/4,R1/2,G1/4 etc
Medium temperature	-40~300℃
Environment temperature	-40~85℃
Measuring media	Gaseous,Liquid,Water
Pressure type	Gauge pressure,Absolute pressure
Accuracy	0.1%F.S,0.25%F.S,0.5%F.S(standard)
Zero tempe drift	±0.03%F.S/℃
E connection	M12x 1(4-pin),Hirschmann, PACK connector,water-proof connector
Overload	200%F.S
Long-term stability	≤0.2%F.S/year
Inherent frequency	5kHz~650kHz
Protection grade	IP65
