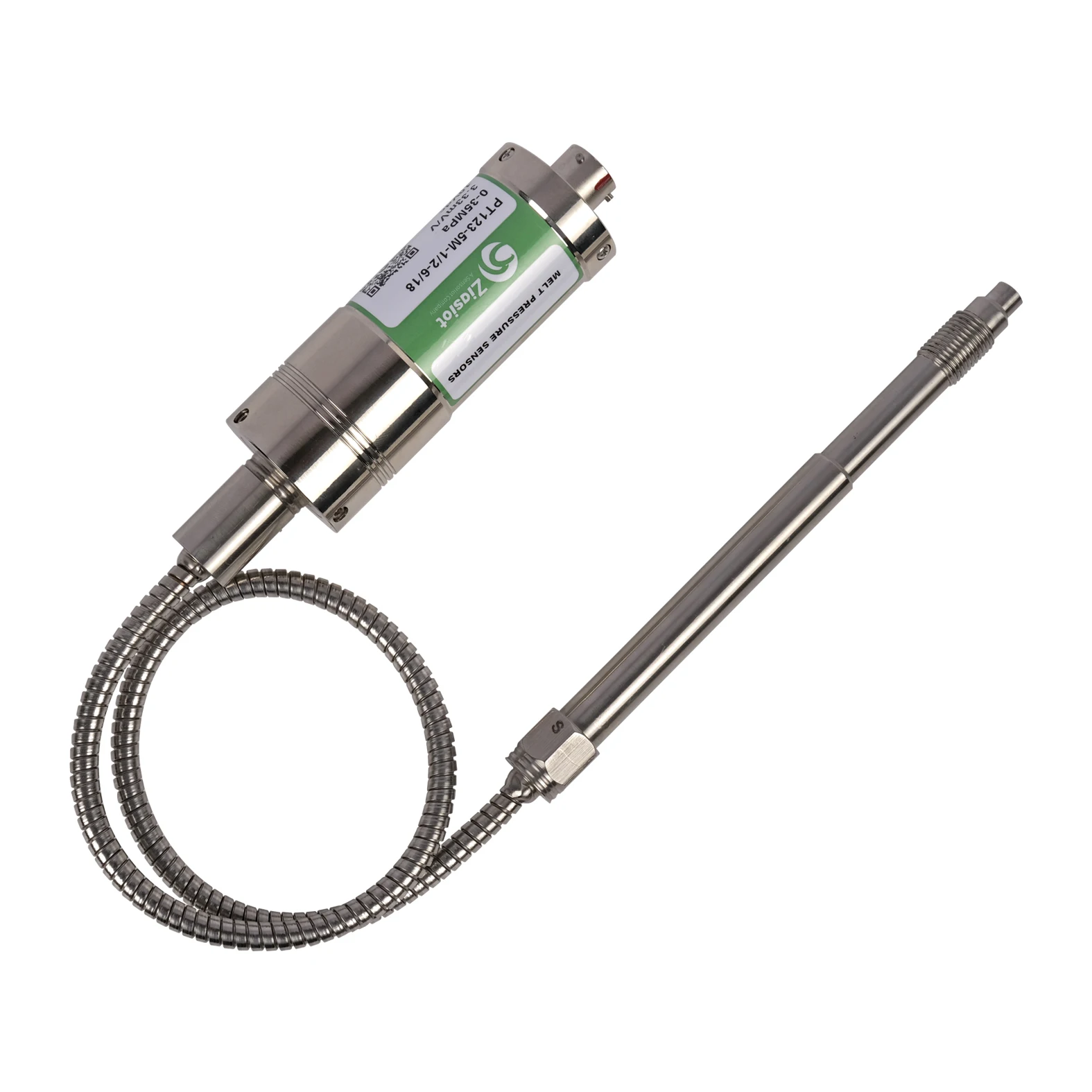

Stanadard Melt Pressure Transducer
Widely used Standard Melt Pressure Transducers for melt pressure detection with good quality and inexpensive price.
Description
|
Input Voltage |
10VDC |
Bridge Resistance |
350Ω |
|
Output Signal |
3.33mV/V |
Diaphragm Material |
17-4PH |
|
Accuracy Grade |
±0.5%F.S |
Diaphragm Temp |
400℃ |
|
Pressure Range |
0～3.5MPa,0～200MPa |
E-Connection |
6-pin standard aviation connector |
|
Pressure Unit |
psi,bar,Mpa |
Mounting Torque |
40N.m Max |
|
Overload Capacity |
1.5 times rated pressure |
Process Connection |
1/2-20UNF |
|
Zero Temp Drift |
0.003MPa/℃ |
Protection Level |
IP65 |
|
Electrical Environmental |
-20～85℃ |
Temp Measuring Components |
E,J,K type or Pt100 |
