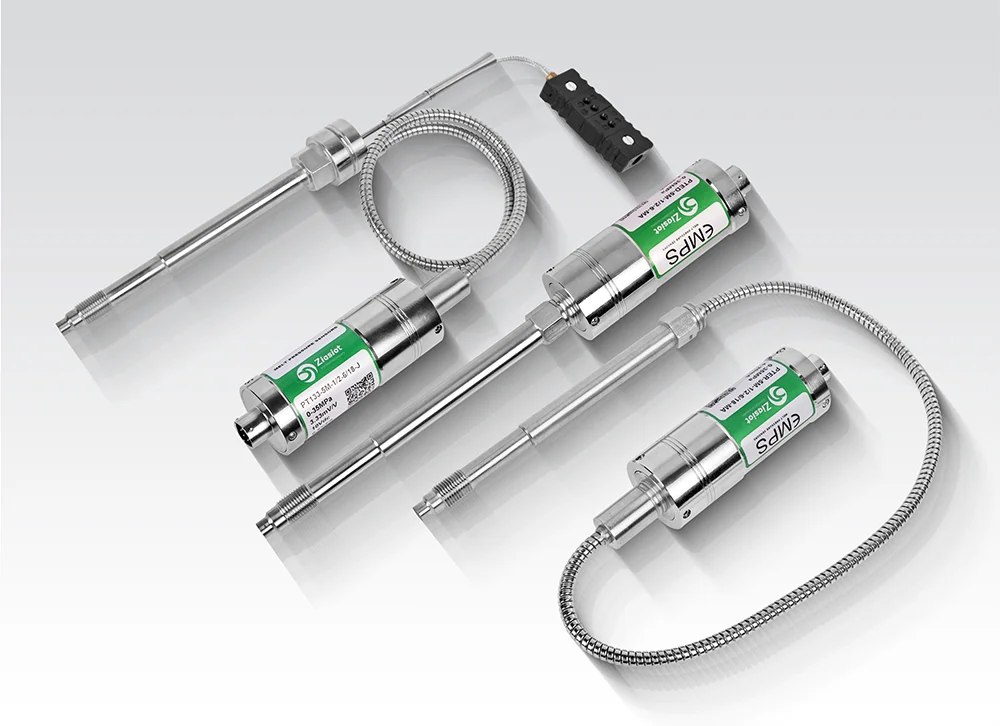

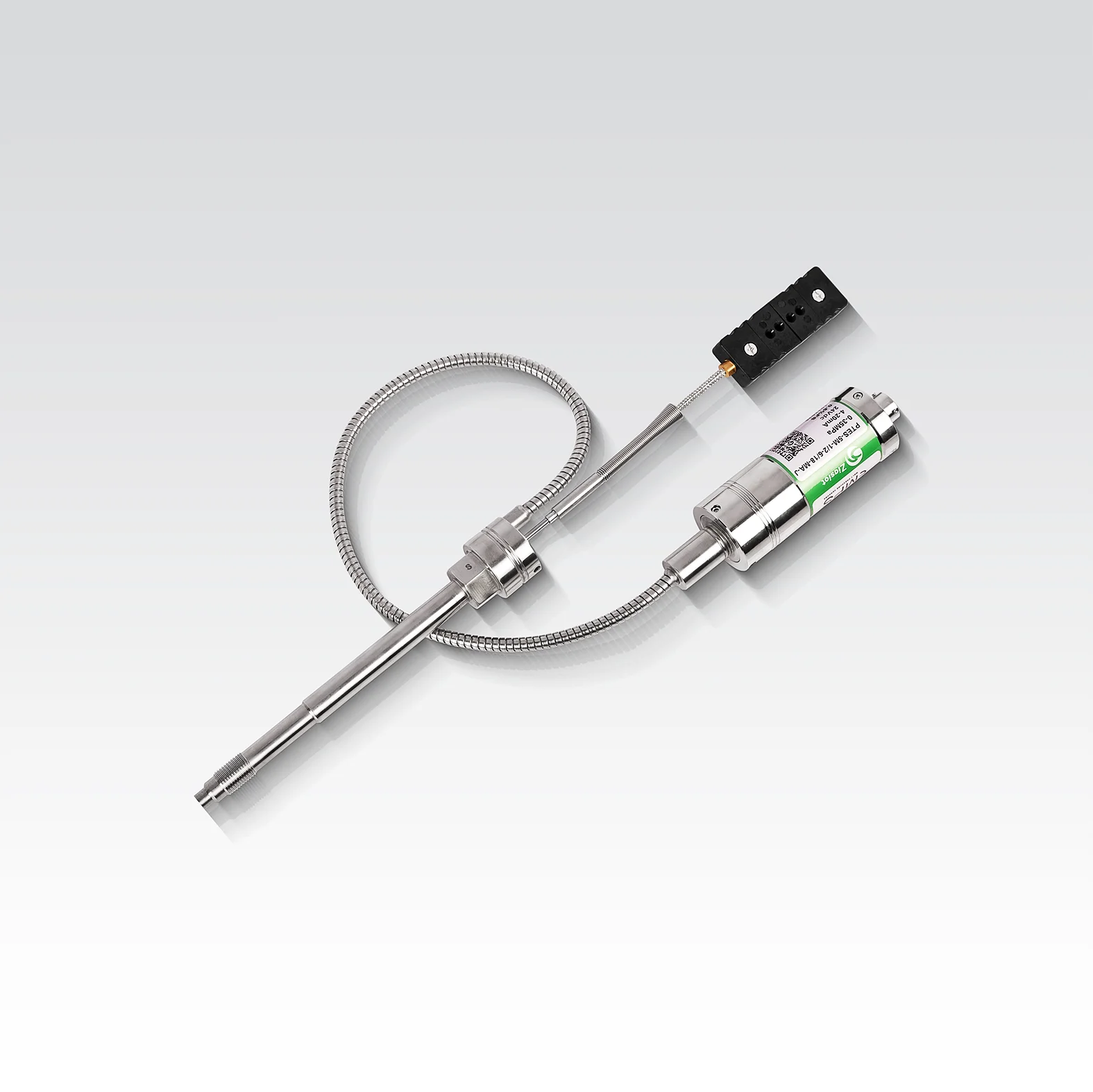

Autozero Extrusion Melt Pressure Transducer
Pressure Range:0-35bar ,0-2000 bar;
Accuracy : 0.5%F.S ,0.25%F.S;
Signal output: 3.33mV/V,4-20mA,0-10V,0-5V;
Temp.: 400℃;
Description
Products Show
Features: Rigid structure, flexible conduit and special diaphragm isolation;
Zero&full scale adjustment;
80% Internal calibration;
Good stability and repeatability.
Zero&full scale adjustment;
80% Internal calibration;
Good stability and repeatability.
Discription:
EMPS PTE economic series is widely used in polymer industry requiring easy installation, good repeatability.Its various signal
outputs such as mV/V, 0-10Vor 4-20 mA are able to be connected with many pressure display. This series can also be equipped with
temperature measurement component like E,J, K thermocouple. PTE series transducer adopts standard -20 UNF thread.The EMPS series
product technology is widely accepted by peers all over the world.
outputs such as mV/V, 0-10Vor 4-20 mA are able to be connected with many pressure display. This series can also be equipped with
temperature measurement component like E,J, K thermocouple. PTE series transducer adopts standard -20 UNF thread.The EMPS series
product technology is widely accepted by peers all over the world.
Application: Profile lines
Compounders
Sheet lines
Pipe lines
Compounders
Sheet lines
Pipe lines
Product Paramenters
|
Input Voltage
|
10VDC (3.33mV/V ) 24VDC(4～20mA,0～5V,0～10V)
|
|
Bridge Resistance
|
350Ω
|
|
Output Signal
|
3.33mV/V4～20mA,0～5V,0～10V
|
|
Diaphragm Material
|
17-4PH
|
|
Accuracy Grade
|
±0.5%F.S
|
|
Diaphragm Temp
|
400℃
|
|
Pressure Range
|
0～3.5MPa,0～200MPa
|
|
E-Connection
|
6-pin standard aviation connector
|
|
Pressure Unit
|
psi,bar,
|
|
Mounting Torque
|
40N.m Max
|
|
Overload Capacity
|
1.5 times rated pressure
|
|
Process Connection
|
1/2-20UNF
|
|
Zero Temp Drift
|
0.003MPa/℃
|
|
Protection Level
|
IP65
|
|
Electrical Environmental Temp
|
-20～85℃
|
|
Temp Measuring Components
|
E,J,K type or Pt100
|
