Explosion-Proof Flange High Temperature Melt Pressure Transmitter
Pressure Range: 0～2000MPa;
Accuracy: ±0.5%F.S;
Signal ouput: 4-20 mA, HART Output;
Temp.:400 °C ;
Protection: IP65, SIL 2;
Description

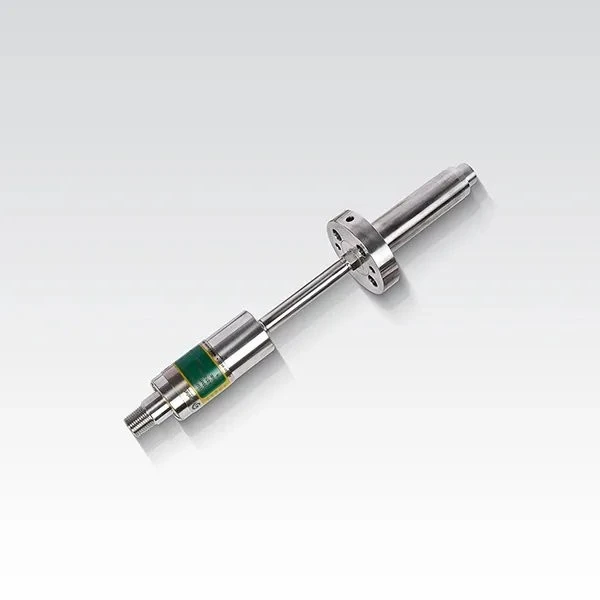

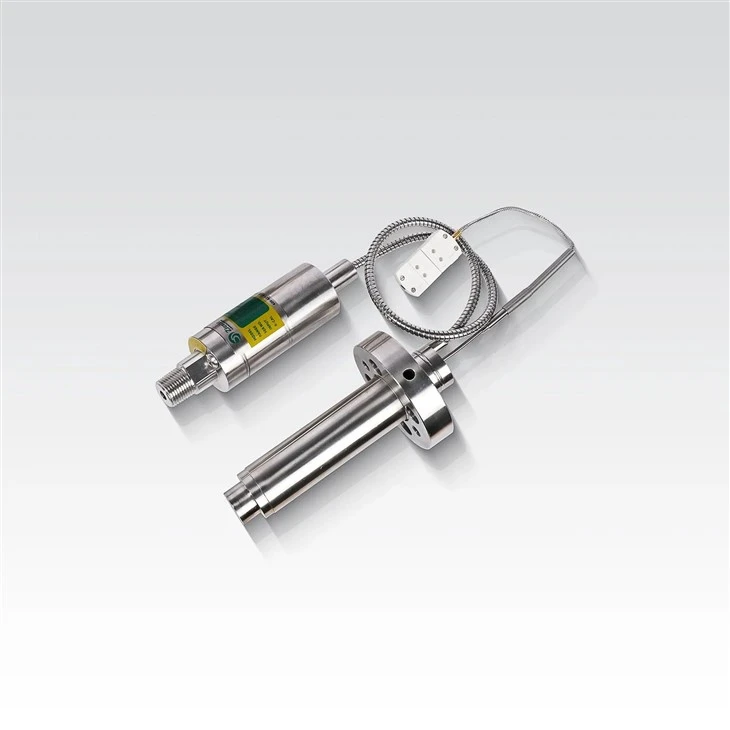

Products Show
Features: Range from 0-10bar, 0-1000bar
Hart communication protocol (optional choice) with 4-20mA output
Rigid structure, flexible conduit and special diaphragm isolation 80% internal calibration;
Zero&F.S adjustment ;
Good stability and anti-interference ability;
Atex certification for potentially explosion
Active compensation of the variations in media temperature
Hart communication protocol (optional choice) with 4-20mA output
Rigid structure, flexible conduit and special diaphragm isolation 80% internal calibration;
Zero&F.S adjustment ;
Good stability and anti-interference ability;
Atex certification for potentially explosion
Active compensation of the variations in media temperature
Discription:
The main characteristic of this PT-FB series of flange type melt pressure sensors are used for high temperature environment and
specially designed for melt pressure measurement and available mainly to be used in large scale fixed installations or stationary
industrial tools, typically extruders for polymers or equipment for R&D purposes.
specially designed for melt pressure measurement and available mainly to be used in large scale fixed installations or stationary
industrial tools, typically extruders for polymers or equipment for R&D purposes.
Application: High demanding polymer extrusion plants
Equipment for R&D purposes
Equipment for R&D purposes
Product Parameters
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
