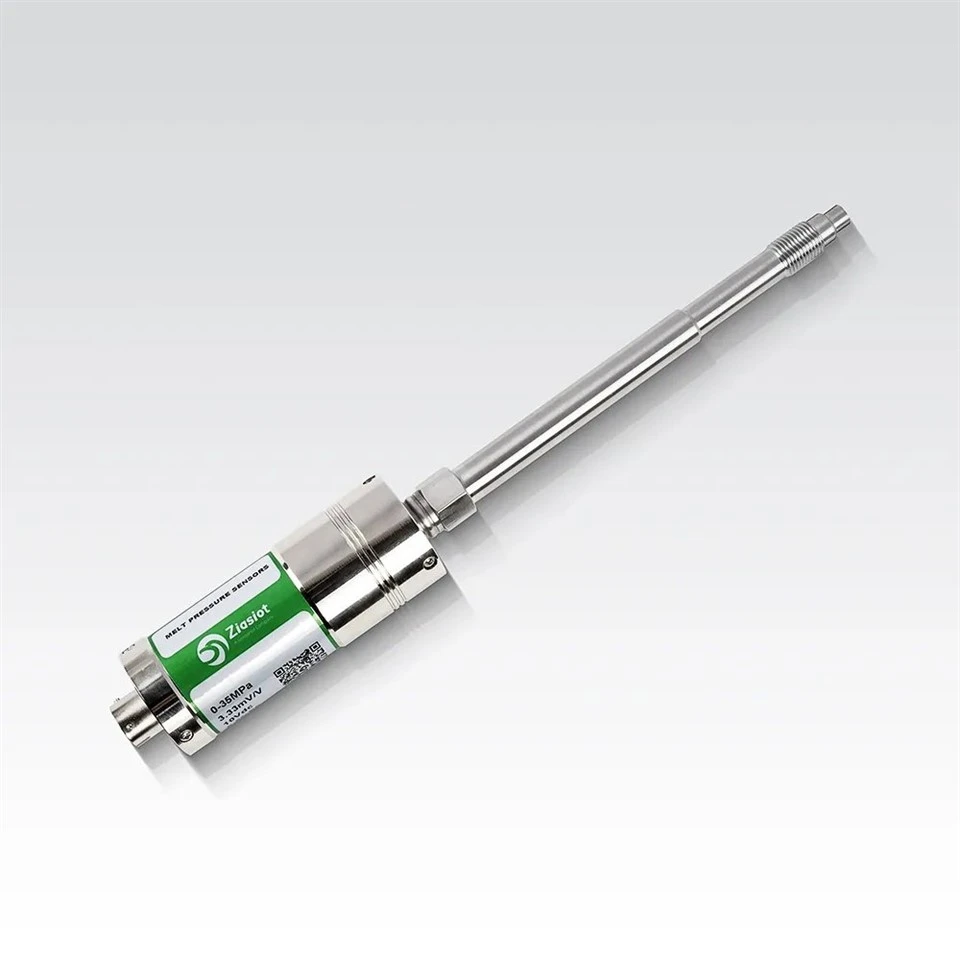

Economical Melt Pressure Transmitter
Pressure Range: 0~3.5MPa～250MPa (0~35bar~2000bar);
Accuracy :±0.5%F.S;
Signal output: 4-20mA;0-10V;0-5V;
Temp:400℃;
Alloy Or Mercury Filled Optional;
Description

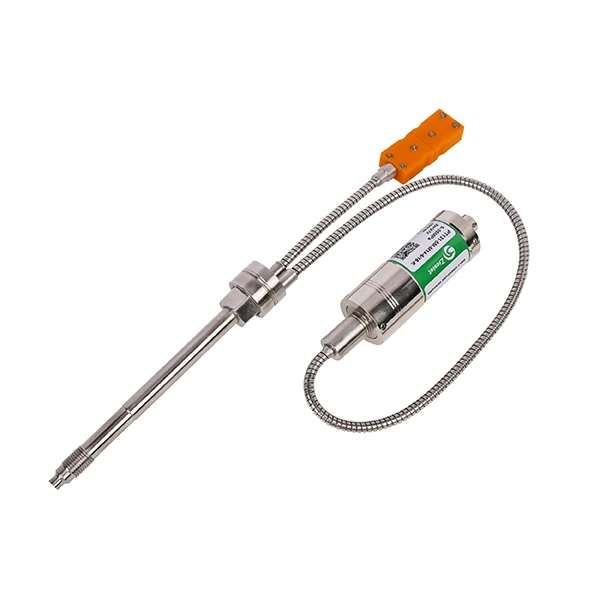

Products Show
Features:
signal output:4～20mA,0～10V,0～5V
accuracy grade:±1.0%F.S
special diaphragm coating
IP65 ingress protection
80% internal calibration
Discription:
Economical melt pressure transmitter series is specially designed for chemical fiber industry pressure measurement at high temperature in the injection molding industry,special diaphrgam and highly anti-abrasive coating of which enable it to work normally at high temperature up to 320℃.This series is installed in the manner of standard threaded connection and has many advantages like high stability and long service life.
Application: injection molding industry chemical fiber industry
Product Parameters
|
Input Voltage
|
24VDC(12～36VDC)
|
|
Bridge Resistance
|
350Ω
|
|
Output Signal
|
4～20mA,0～5V,0～10V
|
|
Diaphragm Material
|
15-5PH
|
|
Accuracy Grade
|
±1.0%F.S
|
|
Diaphragm Temp
|
320℃
|
|
Pressure Range
|
0～10MPa,0～100MPa
|
|

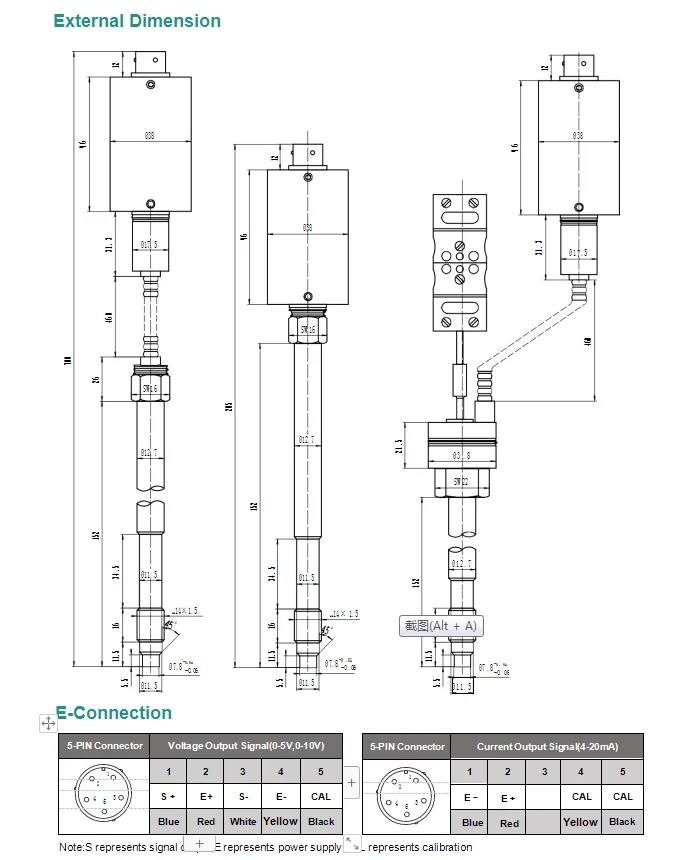

E-Connection
|
5-pin standard aviation connector
|
|
Pressure Unit
|
psi,bar,
|
|
Mounting Torque
|
40N.m Max
|
|
Overload Capacity
|
1.5 times rated pressure
|
|
Process Connection
|
M14×1.5
|
|
Zero Temp Drift
|
0.003MPa/℃
|
|
Protection Level
|
IP65
|
|
Electrical Environmental Temp
|
-20～85℃
|
|
Temp Measuring Components
|
E,J,K type or Pt100
|
