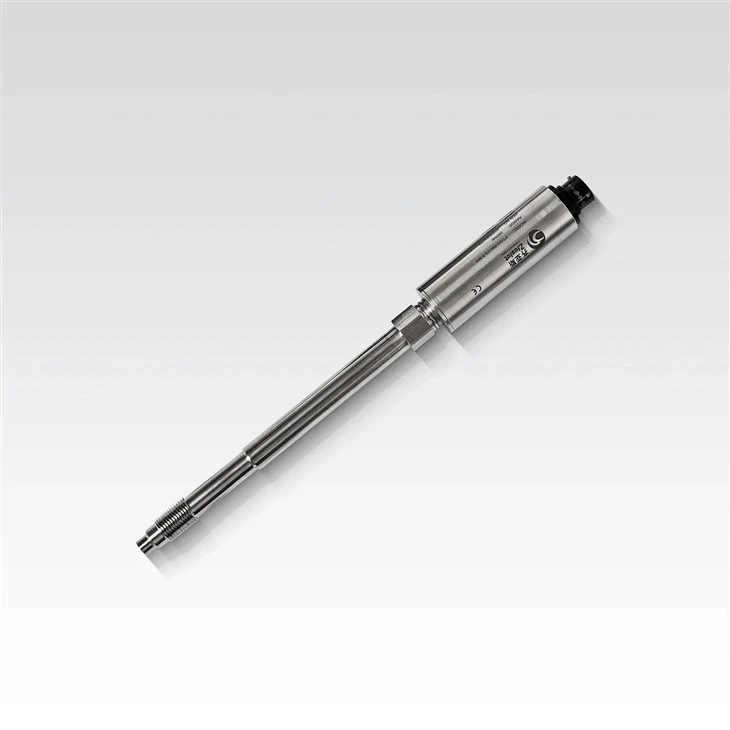

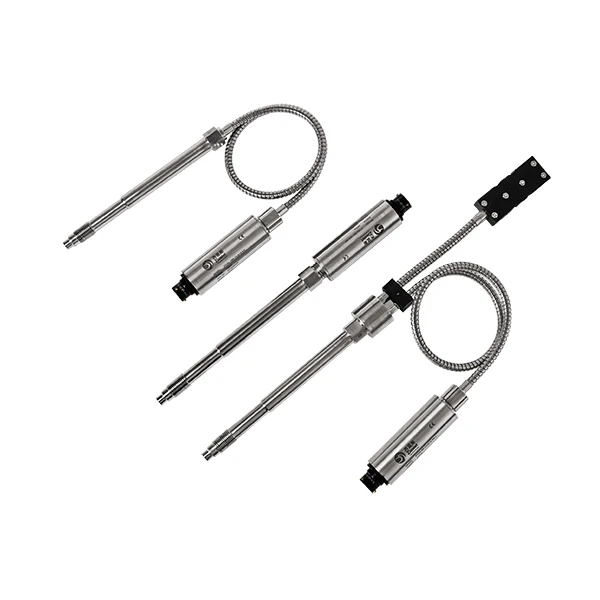

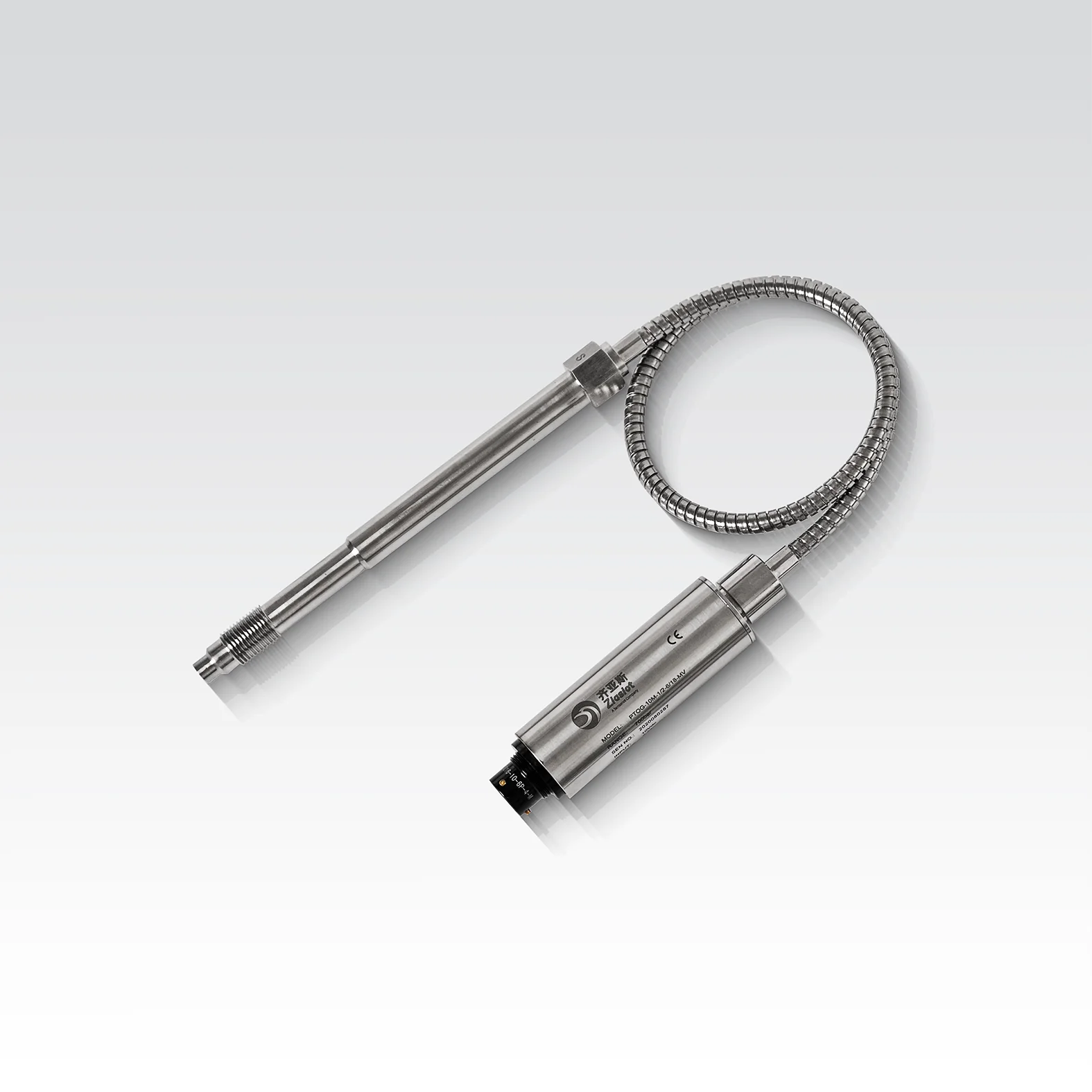

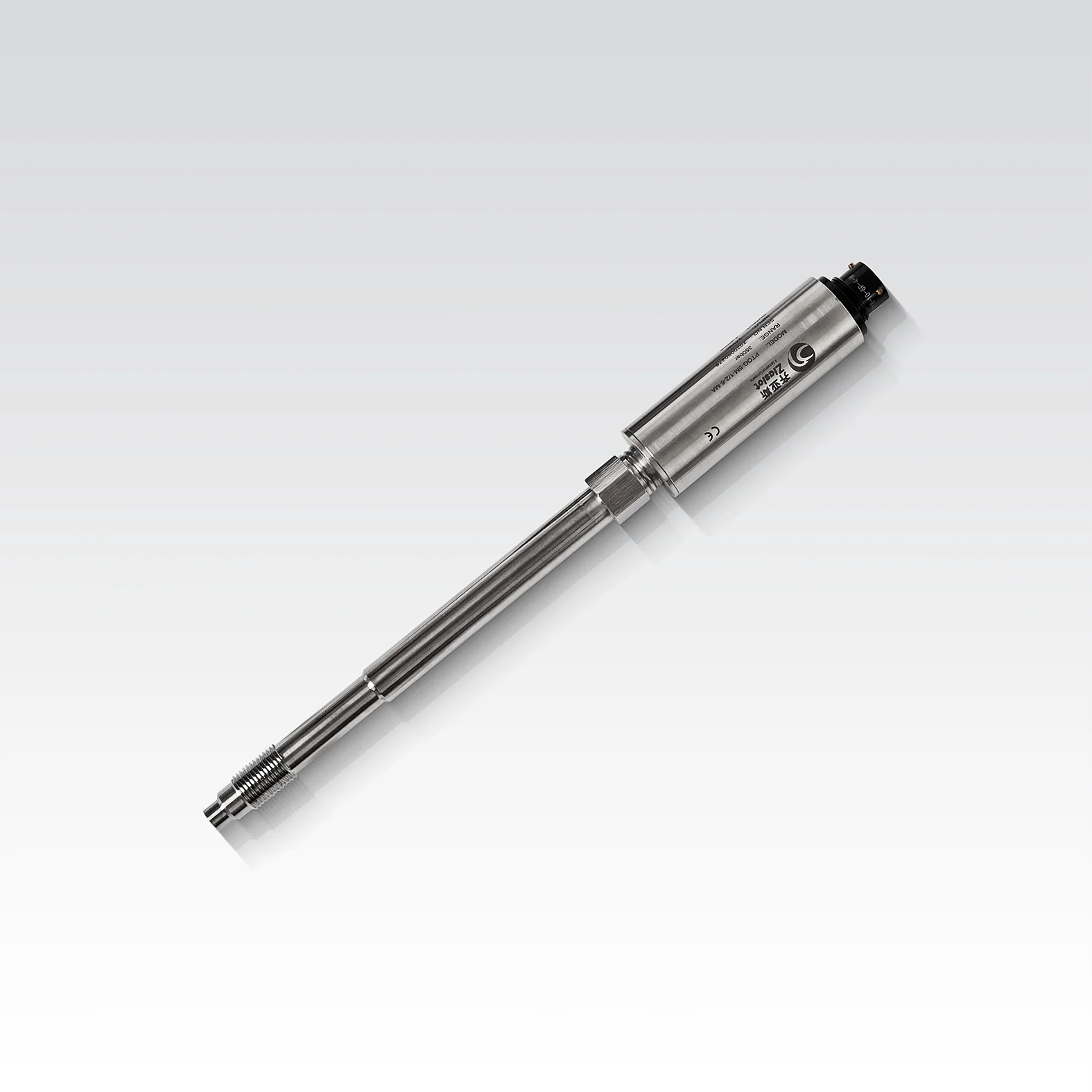

High-temperature Autozero and Magnetic Extruder Melt Pressure Transmitter
PTOG High-temperature Autozero and Magnetic Extruder Flexible Melt Pressure Transmitter SIL2 and PLC Certified adopts Wheatstone bridge principle, can output a variety of signals, is simple to install, has good product performance, and is widely used in chemical fiber industry, rubber industry and plastic extrusion industry.
Description
Product Description
|
Product Name
|
Melt Pressure Sensor
|
|
Pressure Range
|
0~35bar;0~2000bar
|
|
Accuracy
|
±0.5%,±0.25%
|
|
Ouptut Signal
|
0-10V,3.33mV/V,4-20mA
|
|
Power
|
12～36Vdc(0-10V;4-20mA);6-12Vdc(3.33mV/V)
|
|
Process Connection
|
M14×1.5,1/2-20UNF,M18×1.5
|
|
Diaphragm Material
|
17-4PH,inconel718,C276
|
|
Diaphragm max temp
|
400℃
|
|

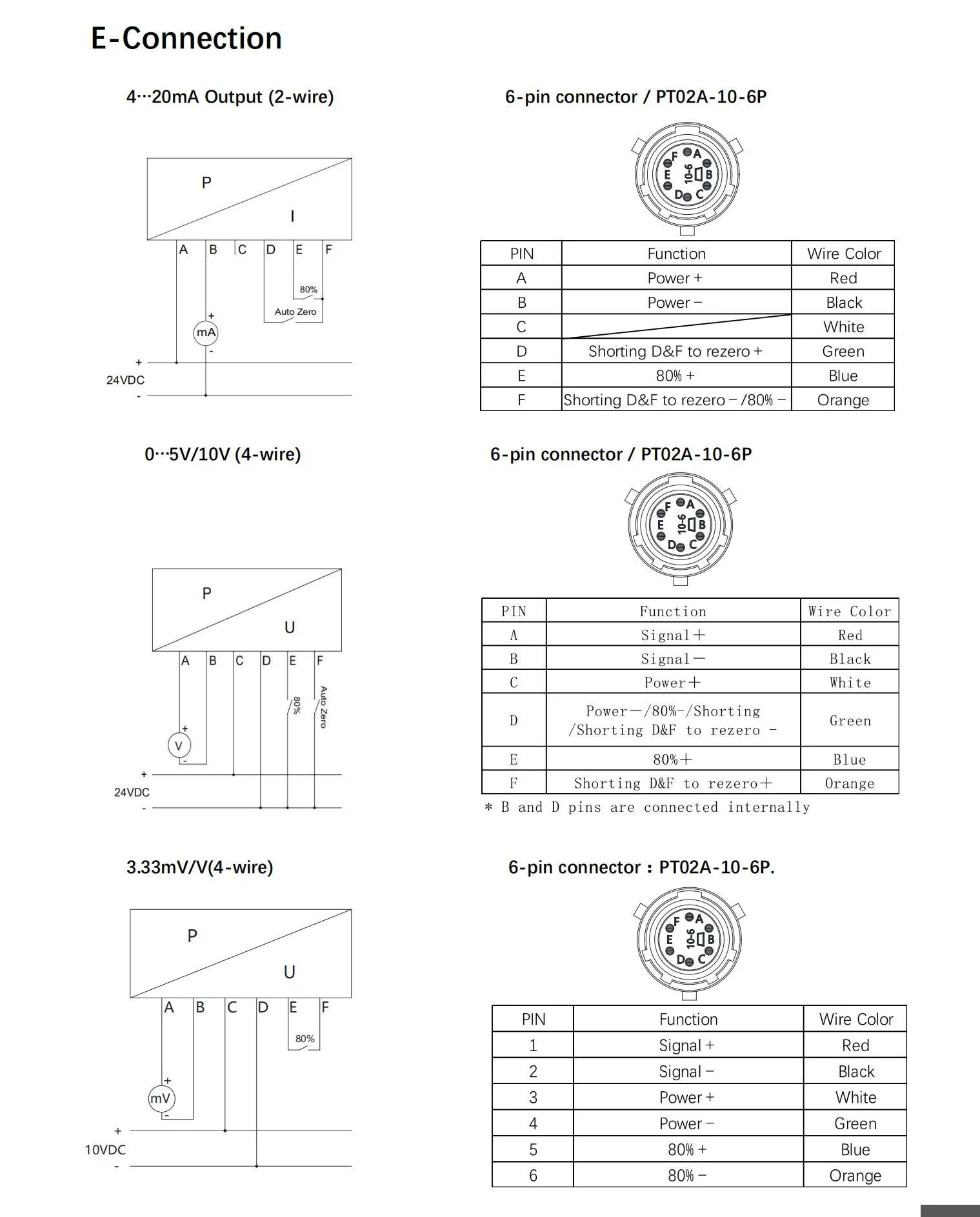

E-connection
|
6-pin connector(Standard),8-pin connector
|
|
Electrical Environment temp
|
-20℃～85℃
|
|
Thermocouple
|
J Type,E Type,K Type,pt100
|
|
Protection degree
|
IP65
|
|
Filling Material
|
ATF Alloy-filling or Mercury filling
|
Product description
PTOG Series adopt high-performanace core compeponents,digital-analog integrated circuit design,linear compensation can be achived through the program and high measurement accuracy can be obtained.Comply with SIL2,PL"c" safety performance standards. This series can be rezeroed in two ways:remotely via shorting two pins together and locally via magnetic contacts
.
