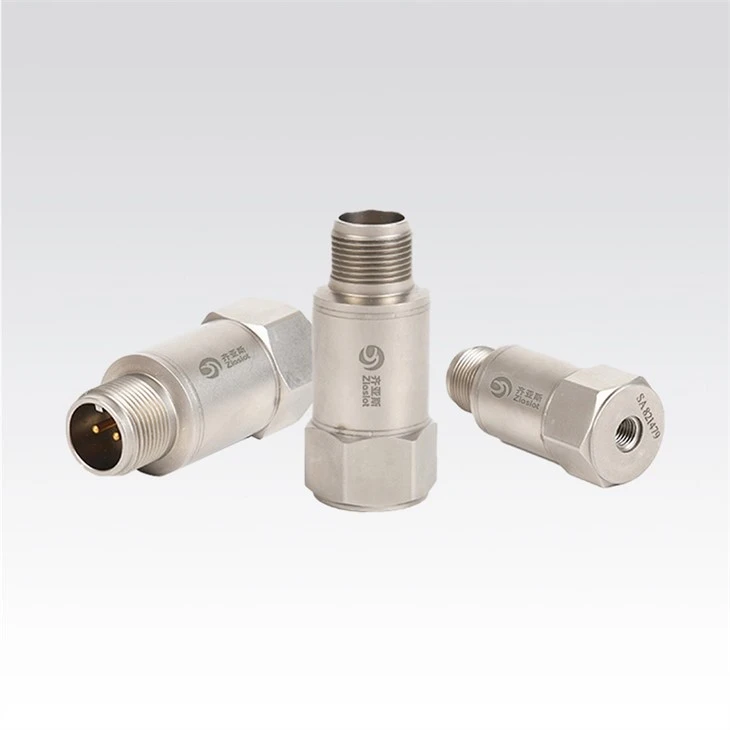

Industrial Vibration Sensor



1- High Sensitivity and Accuracy: The Ziasiot ZSS21D04 Vibration Sensor offers a sensitivity of 100mV/g, ensuring accurate measurements in various industrial applications, including those involving high-speed vibrations (160Hz).



2- Durable and Reliable: With a shock resistance of 2000g and protection class IP65, this sensor is designed to withstand harsh environments and provide reliable performance in demanding industrial settings.



3- Wide Operating Temperature Range: The sensor operates within a temperature range of -40°C to +120°C, making it suitable for use in various industrial environments with extreme temperature fluctuations.



4- Low Noise and Interference: The sensor features a low noise level of <50v (RMS) and strong anti-interference capabilities, ensuring accurate readings and minimal signal degradation.



5- User-friendly and Versatile: The Ziasiot ZSS21D04 Vibration Sensor is compatible with a 1/4-28 mounting type and features a 5/8-24 two-core socket, making it easy to integrate into various industrial monitoring systems.





Ziasiot ZSS21D04 Vibration Sensors are stainless steel shell, laser welding sealing, shell insulation, waterproof, dust-proof, oil-proof design, suitable for various industrial sites. Built-in IEPE circuit, isolated floating, two-core low resistance voltage or 4-20mA output, strong anti-interference.





This ZSS21D04 Vibration and Temperature Sensor Complex Accelerometer for Industrial, Rail Transit and Intelligent Ship Monitoring







Mounting Type： Top

Description： Vibration Sensor

Model Number： ZSS21D04 Vibration Speed Sensor

Theory： Piezoelectric

Output：4~20mA

Brand： Piezoelectric Vibration Speed Sensor

Operating Temperature：-40℃～+85℃

Mounting Type：1/4-28

Function:  Measure absolute vibration velocity

Features： Strong anti-interference performance

Non-linearity：±1%

Frequency Response：10～1,000Hz(±1dB), 4～1,000Hz(±3dB)

Size / Dimension：25*52.5mm

Measuring Range：±1270 mm/s

Output Configuration: 5/8-24 two-core socket

Sensitivity： 4.0mv/ mm/sec

Function： Measure absolute vibration velocity

Current Rating - DC：2～10mA

Voltage - Input：18-28VDC

Shock Resistance(peak):  2000 g

Install Ground Insulation：≥10^8Ω

Temperature Response: Below Temperature Curve

Structural Style： Cutting

Application： Industrial Site Monitoring

Protection Class： IP65

Weight：~80g

Erection Bolt：1/4-28 turn M6

Connecting Cable： MIL Two-core connecting Cable x 3m
