Digital PID Pressure Controller
Factory Price Z90D Dual Display Digital PID Temperature And Pressure Controller
Description
Product Description
Ziasiot Intelligent PID Digital Pressure Controller
The Ziasiot Intelligent PID Digital Pressure Controller incorporates a variety of cutting-edge electronic and single-chip computer technologies from around the world, they can also fully replace imported high-grade pressure controllers or controllers from other countries due to their high cost, performance, and ability to adapt to changing power grid conditions. the system's stability and dependability are guaranteed by its exquisite design, comprehensive features, and superior anti-interference performance.
The Ziasiot Intelligent PID Digital Pressure Controller can match our melt pressure transmitters, industry pressure, or level transmitters to measure and control your equipment.
Products Features
PID pressure control signal output all the way to provide 0 ~ 10mA / 0 ~ 20mA / 4 ~ 20mA / 0 ~ 5V / 1 ~ 5V / 0 ~ 10V six kinds of output type , programmable settings ;
Two alarm outputs offer a variety of alarm modes and programmable settings ;
Double- color 4 bit LED digital display, 20-segment bar indicates the output power electronics, clear and intuitive ;
The perfect combination of triple anti-jamming technology to ensure system stability ;
Automatic calibration function, the panel error correction, simple and quick operation, ensuring more accuracy;
Output power control, with manual/automatic switching function easily ;
Complete specifications, compatible with a variety of pressure sensors/transmitters;
More than 20,000 hours of trouble-free operation ;
RS485 communication interface provides a computer, mailing address, and programmable baud rate; ( optional )
The linear model can give the way the pressure output voltage V or current mA, six kinds of output type. ( Optional )

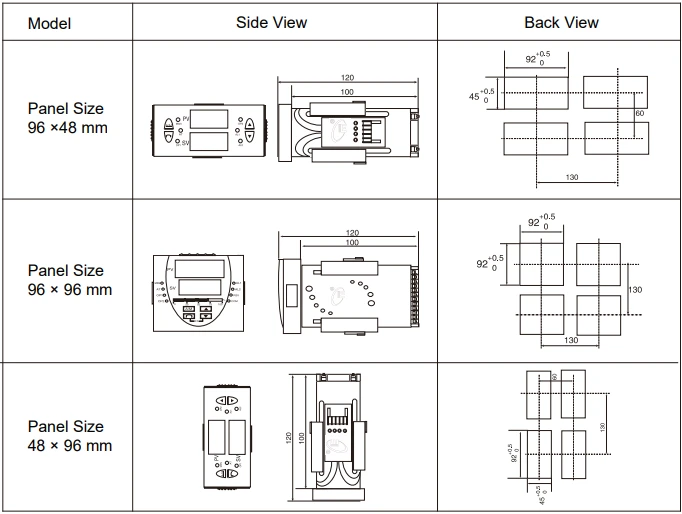

dimensions
viedo description
Products Parameters
Z90D digital PID pressure controller
|
Input |
||||
|
Input signals |
Current |
Voltage |
Resistance |
Thermocouple |
|
Input Impedance |
≤250Ω |
≥500KΩ |
|
|
|
Maximum input current |
30mA |
|
|
|
|
Maximum input voltage |
|
<6V |
|
|
|
Output |
||||
|
Output signals |
Current |
Voltage |
Relay |
24V Distribution or feeder |
|
Output load capability |
≤500Ω |
≥250 KΩ (Note: Please replace the module for higher load capacity) |
AC220V/0.6(small) DC24V/0.6A(small) AC220V/3A(big) DC24V/3A(big) According to Remarks |
≤30mA |
|
Adjustive output |
||||
|
Control output |
Relay |
Single-phase SCR |
Dual-phase SCR |
Solid relay |
|
Output load |
AC220V/0.6A(small) DC24V/0.6A(small) AC220V/3A(big) DC24V/3A(big) According to Remarks |
AC600V/0.1A |
AV600V/3A (Should be remarked if driven directly) |
DC 5-24V/30mA |
|
Comprehensive parameter |
||||
|
Accuracy |
0.2%FS±1word |
|||
|
Setting model |
Panel touch key parameter setting values locking; store the setting values permanently |
|||
|
Display style |
-1999 ~ 9999 measured values, set values, external given values display; 0~100% valve position display 0 ~ 100% output values display; LBD display for working state |
|||
|
Working environment |
Ambient temperature: 0 ~ 50 ℃; Relative humidity: ≤ 85% RH; Far from strong corrosive gas |
|||
|
Power supply |
AC 100 ~ 240V(switching power), (50-60HZ); DC 20 ~ 29V |
|||
|
Power |
≤5W |
|||
|
Frame |
Standard snap-on |
|||
|
Communication |
Standard MODBUS communication protocol, RS-485, communication distance up to 1 km, RS-232 ,communication distance up to 15 meters Note: While with communication function, the communication converter should be a active one. |
|||
