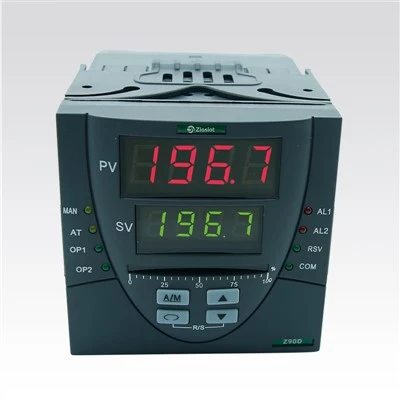

Factory Price Z90D Dual Display Digital Temperature And Pressure Controller
Description
Product Description
Ziasiot intelligence PID digital pressure controller adopts an advanced expert PID intelligence algorithm, with high control precision, no overshoot, and a fuzzy self-tuning function. The output is designed as modular architecture; you can acquire various control types by replacing different function modules. You can choose PID control output type as any of current, voltage, SSR solid state relay, single / three-phase SCR zero-over triggering and so on. Besides it has other two ways alarm output, and optional transmission output, or standard MODBUS communication interface. The instrument can replace the servo amplifier in driving the valve (valve position control function) directly, external given function, and manual/automatic no-disturbance switch function.
With multiple types of input functions, one instrument can be used with different various input signals, reducing the number of instruments greatly. It has a very good applicability and can be used with multiple types of sensors, and transmitters used in conjunction to achieve the temperature and pressure measurements that, and with all the various actuators on the electrical and electromagnetic heating equipment, electric valves PID regulation and control, alarm control, data acquisition functions.
dimensions
Parameters
Z90D digital pressure controller
|
Input |
||||
|
Input signals |
Current |
Voltage |
Resistance |
Thermocouple |
|
Input Impedance |
≤250Ω |
≥500KΩ |
|
|
|
Maximum input current |
30mA |
|
|
|
|
Maximum input voltage |
|
<6V |
|
|
|
Output |
||||
|
Output signals |
Current |
Voltage |
Relay |
24V Distribution or feeder |
|
Output load capability |
≤500Ω |
≥250 KΩ (Note: Please replace the module for higher load capacity) |
AC220V/0.6(small) DC24V/0.6A(small) AC220V/3A(big) DC24V/3A(big) According to Remarks |
≤30mA |
|
Adjustive output |
||||
|
Control output |
Relay |
Single-phase SCR |
Dual-phase SCR |
Solid relay |
|
Output load |
AC220V/0.6A(small) DC24V/0.6A(small) AC220V/3A(big) DC24V/3A(big) According to Remarks |
AC600V/0.1A |
AV600V/3A (Should be remarked if driven directly) |
DC 5-24V/30mA |
|
Comprehensive parameter |
||||
|
Accuracy |
0.2%FS±1word |
|||
|
Setting model |
Panel touch key parameter setting values locking; store the setting values permanently |
|||
|
Display style |
-1999 ~ 9999 measured values, set values, external given values display; 0~100% valve position display 0 ~ 100% output values display; LBD display for working state |
|||
|
Working environment |
Ambient temperature: 0 ~ 50 ℃; Relative humidity: ≤ 85% RH; Far from strong corrosive gas |
|||
|
Power supply |
AC 100 ~ 240V(switching power), (50-60HZ); DC 20 ~ 29V |
|||
|
Power |
≤5W |
|||
|
Frame |
Standard snap-on |
|||
|
Communication |
Standard MODBUS communication protocol, RS-485, communication distance up to 1 km, RS-232 ,communication distance up to 15 meters Note: While with communication function, the communication converter should be a active one. |
|||
viedo description
