Submersible Level Sensor







In the realm of industrial measurement and monitoring, accurate level detection is crucial. Ziasiot's PT220 Submersible Level Sensor stands out as a reliable solution, closely related to hydrostatic level transmitters and submersible level sensors.





The Ziasiot PT220 Submersible Level Sensor is a sophisticated device designed for precise liquid level measurement. The sensitive element adopts diffused silicon core. The sensor has a built-in digital circuit board with strong anti-radio frequency and electromagnetic interference. It has strong anti interference ability and wide temperature compensation range,the standard body of the sensor is made of 304 stainless steel, adopts a complete assembly process, and has a protection level of IP68 to ensure that it is durable and has a long service life in high-demand industrial situations.





High Accuracy: The PT220 submersible level sensor offers exceptional accuracy, ensuring that the measured liquid level data is highly reliable. This is crucial for applications where even the slightest deviation can have significant consequences.

Robust Construction: Built to withstand harsh environments, the transmitter has a durable housing that protects the internal components from corrosion and mechanical damage. It can be used in various liquids, including water, chemicals, and industrial slurries.

Easy Installation: The submersible design allows for straightforward installation. It can be simply lowered into the liquid tank, reducing installation time and complexity.

Wide Measuring Range: It has a wide measuring range, making it suitable for different applications, whether it's a small - scale industrial process or a large - scale water management system.









• Urban water supply, groundwater level monitoring

• Water conservancy and hydropower monitoring and control

• Petrochemical industry

• Strongly corrosive liquid level monitoring

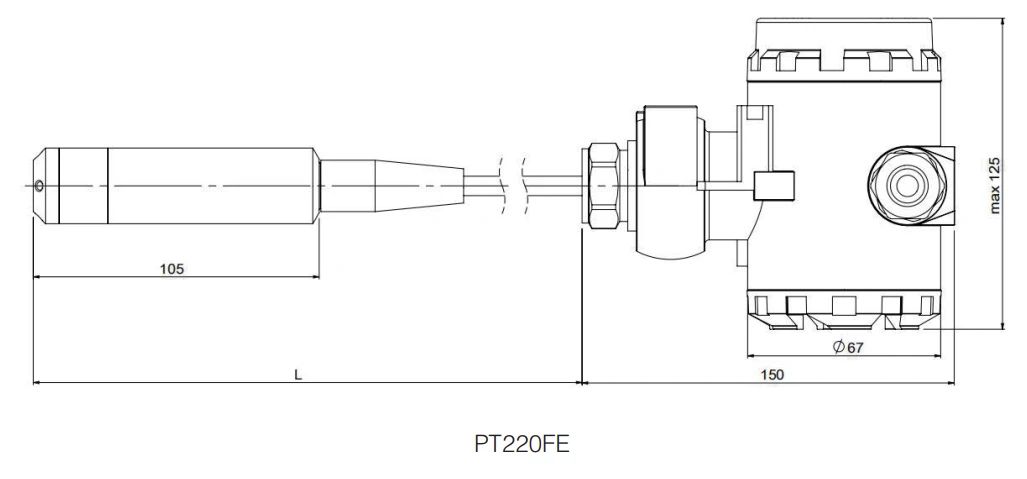

PT220E series Submersible Hydrostatic Level Sensor with LCD display, its 304 &316 stainless steel and hermetically sealed housing makes it suitable for most industrial water, liquids and oils. The welded housing is tested in-house via a helium leak tester to ensure proper protection.
The ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use.





Pressure range: 0~1mH2O; 0~200mH20

Accuracy: 0.5% F.S; 0.25% F.S; 0.1% F.S

Output Signal: 4-20ma, 0-5V, 0-10V

Operating Temperature: -25~85℃

Power Supply: 12~30Vdc / 15~30Vdc / 15~30Vdc
