Explosion Proof Submersible Level Transmitter
Split Type Liquid Submersible Hydrostatic Level Transmitter level indicator 4-20mA explosion proof Hydrostatic Level Pressure Transducer
Description
Features
IP68 protection, can be immersed in liquid for a long time;
Resistant to high temperature and corrosive liquid measurement
High precision, anti-interference;
Support OEM;
Can measure diesel tank, gasoline and other oil levels;
Submersible probe measurement method, simple and convenient installation;
Application Area
It is suitable for high temperature corrosive occasions and effectively solves the problem of high temperature corrosive liquid and sewage level measurement.
The products are widely used in liquid level measurement and control in environmental protection, variable frequency water supply, high temperature oil pool, industrial process control, chemical industry and other fields.
When measuring sewage, sludge and other media, a filter structure can be added according to customer requirements.
Product Description
Submersible Stainless Steel Level Sensor consists of a stainless steel gas cylinder, a stainless steel capillary and an explosion-proof junction box. It is suitable for high temperature corrosive occasions (water, diesel, gasoline tanks). Measuring range 0~20m~100m can be customized, and 0~600℃ can be customized.
Parameters
| Range: | 0-5-15-20-100m (liquid level height/depth) Customize parameters. |
| Output signal: | 4-20mA (two-wire system), 0-20mA, 0-5V, 1-5V, RS485; |
| Load capacity: | Real-time liquid level |
| Insulation resistance: | greater than 2000M2 (100VDC); |
| Power supply: | 24VDC (12~36DCV); |
| Accuracy: | 0.5%FS; |
| Long-term stability: | ≤0.2%FS/year; |
| Temperature compensation: | -20-80℃ |
| Medium temperature: | -20~200℃~400℃~600℃,customizable |
| Storage temperature: | -40-125℃ |
| Ambient humidity: | ≤90%RH |
| Protection class: | IP68 |
| Main structural material: | Pressure tube material stainless steel 1Cr18Ni9Ti; |
| The junction box is metal cast aluminum, | |
| Gas cylinder material: 304 stainless steel (medium 37mm*200mm); | |
| Airway material: 304 stainless steel (medium 4mm); (can be bent at will) | |
| 304/316 stainless steel pipe optional | |
| Overload pressure: | 200%F.S |
| Natural frequency: | 5KHz~650KHz |
| Electrical connections: | Waterproof joints, stainless steel explosion-proof joints |
| Measuring medium | Liquids such as oil and water |
| Process connection | All stainless steel probe insert. Thread or flange sizes can be customized. |

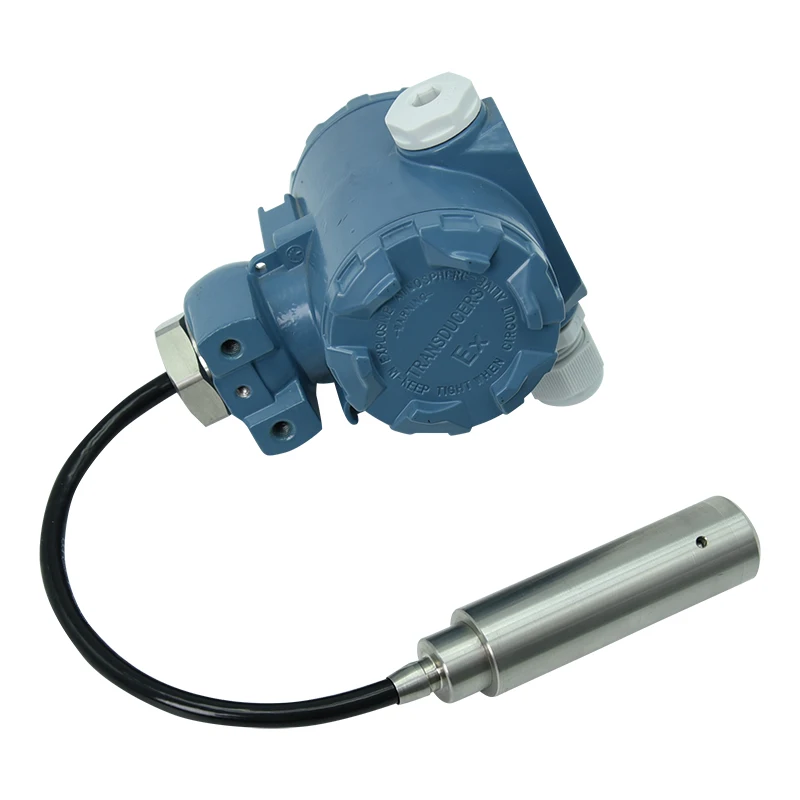

Product Show

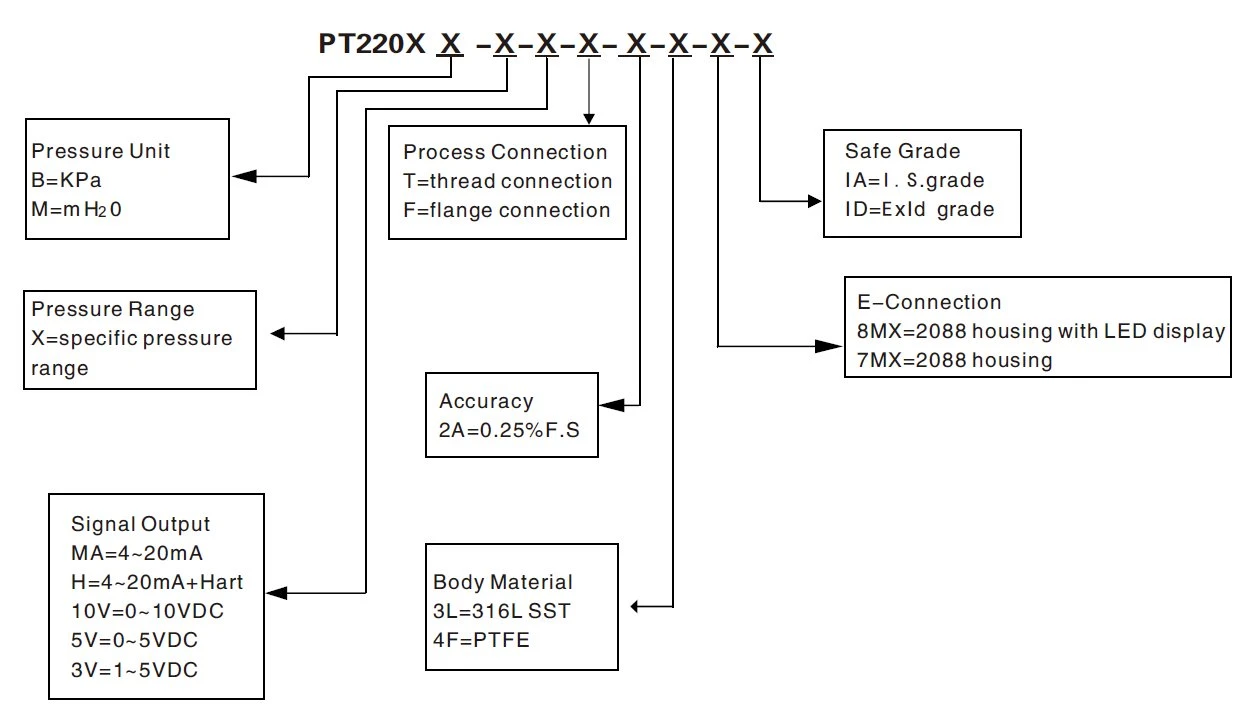

Ordering Code
ordering Guide
FAQ
Q:What kind of products do you offer?
A:We supply kinds of melt/industiral pressure sensors, melt/industrial pressure gauges, level sensors, flow meters and digital indicators and controllers. The main market is European countries, America, the Middle East and Asia. Certificates are international ones.
Q: Could I get samples?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: Could I visit your factory?
A: Of course if you need we will help you to visit our factory.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from the product photo side or the bottom of this page.
Q: How to order?
A. In order to send you correct solution and best offer, please provide the following information when send inquiry, thanks !
1. What is the process medium? Water, oil or others.
2 Measure range: i.e. 0-5m or.
3. Output signal:4-20mA, RS485 or.?
4. Require quantity?
Our foreign trade sales will reply to you as soon as possible.
