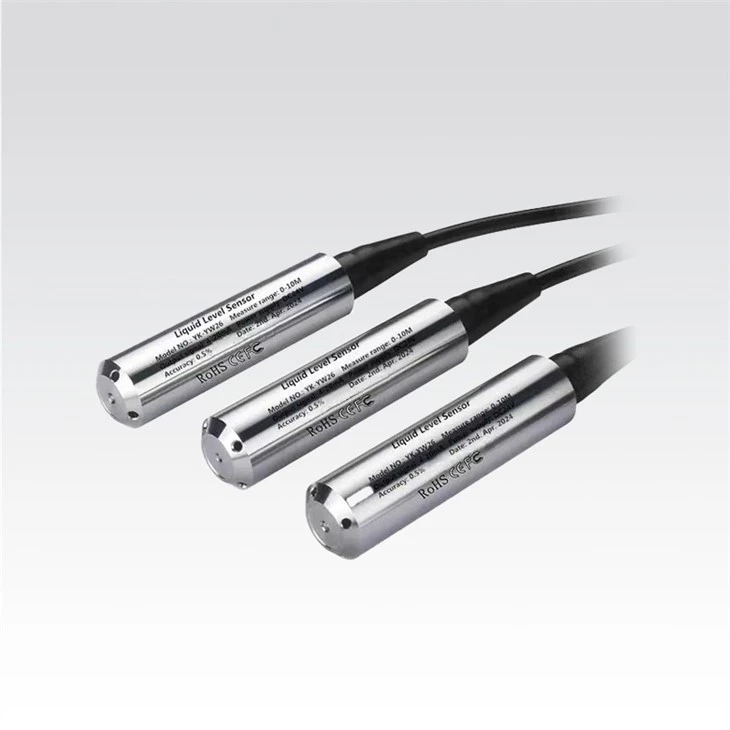

Liquid Level Transmitter 4-20ma
Deep Well Borehole Submersible Water Depth Level Sensor Transmitter 4-20mA 0-10V Liquid Level Pressure Transmitter
Description
Features
✔ Ziasiot submersible water level sensor with its 304 and 316 stainless steel and hermetically sealed housing makes it suitable for
most industrial liquids.
✔ Welded housings are tested internally with a helium leak tester to ensure proper protection. A cable vent pipe automatically compensates for atmospheric pressure changes above the tank.
✔ The cable's conductors are also isolated from the external environment to maintain the level sensor for long-term use.
✔ Measuring range from 0-500m can be customized, output 4-20mA, 0-10V, RS485 can be customized.
NOTE: If you need other parameter customization, please feel free to contact us
Application Area
water, oil and other low corrosive liquids, etc.
Product Description
The PT220 Submersible level transmitter, based on the principle that the hydrostatic pressure of the measured level is proportional to the height of this liquid, adopts the piezoresistive effect of diffused silicon, converts pressure into an electrical signal, by temperature compensation and linear calibration, then converts into standard current, voltage and RS485 signals and outputs.
It can be directly connected with PLC/DCS, display instrument and computer, remote signal transmission also can be carried out. The level transmitter is widely used in liquids measurement of petrochemicals, water supply and drainage, environmental protection and electric power.
Parameters
|
Model NO.:
|
PT220 |
|
Name:
|
Submersible Level Sensor
|
|
Measuring range:
|
0~500m customize
|
|
Output signal:
|
RS485, 4-20mA, 0-20mA, 0-5V, 0-10V, parameters can be customized
|
|
Power supply
|
DC24V
|
|
Working temperature:
|
-20℃~+85℃
|
|
Accuracy:
|
0.2%; 0.5%
|
|
Reponse time:
|
≤ 50ms
|
|
Load capacity
|
≤ 500Ω
|
|
Linearity
|
0.03%
|
|
Measuring medium:
|
non-corrosive liquids
|
|
Overload pressure:
|
300% F.S
|
|
Shell protection:
|
IP68
|
Product Video
