Submersible Level Transducer

0-500M Water tank deep well water liquid level transducer continuous monitoring Waterproof IP68 Submersible hydrostatic water 4-20mA 0-5V 10V RS485 Output Level Sensors for clean Water, drinking Water, waste water, river water etc

Send Inquiry

Description

Product Description

Products Show

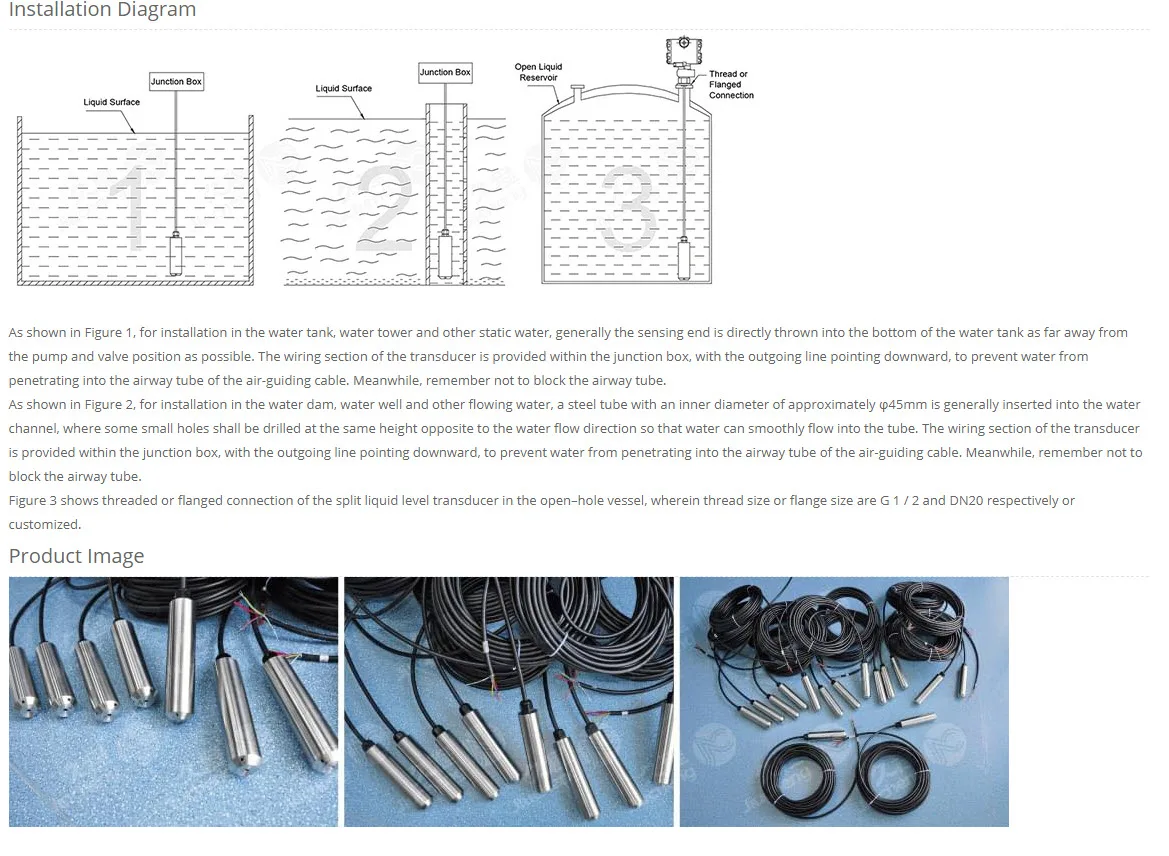

product-1-1

Features:

Moisture-proof, anti-condensation, anti-leakage, protection grade IP68 Excellent impact resistance, overload resistance, vibration resistance and corrosion resistance Strong protection against radio frequency and electromagnetic interference High precision, high frequency response and good long-term stability Field display can be configured to facilitate field reading

Description:

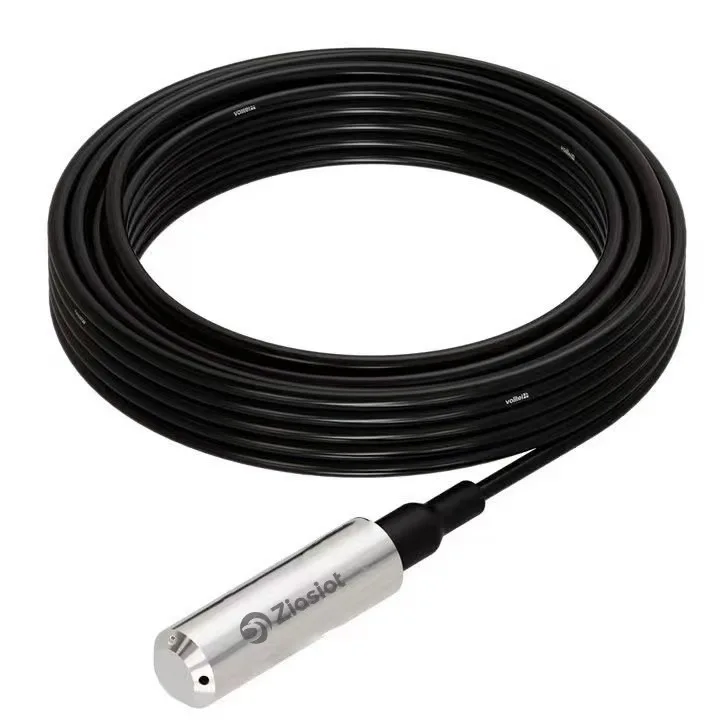

The PT220 input liquid level pressure transmitter is specially designed for diving liquid level measurement, with diffused silicon core as the sensitive element, digital circuit board with strong anti-radio frequency and electromagnetic interference built in the sensor, strong anti-interference ability and wide temperature compensation range.The standard body of the sensor is made of 304 stainless steel, with perfect assembly technology and protection grade IP68, which ensures durability and long service life in high-demand industrial occasions.

Application:

Monitoring of urban water supply and groundwater level Monitoring and control of water conservancy and hydropower Petrochemical industry Strong corrosive liquid level monitoring

Product Paramenters

Pressure range	0 ~ 1mh2o to 0 ~ 200mh2o
Type of pressure	manometer pressure
measurement accuracy	Class 0.5, class 0.25, class 0.1
behaviour of electricity	Two wire system	Three-wire system 0 ~ 10v	three-wire system
output signal	(4～20)mA	(0～10)V	(0～5)V
Power supply	12～30Vdc	15～30Vdc	12～30Vdc
insulance	500MΩ 100Vdc
Overload pressure	3 times rated pressure
Failure pressure	5 times rated pressure
5 times rated pressure	(-20～85)℃
the protection grades	IP68
Long term stability	0.2%FS/year

Products Video

Parameters

Pressure range	0 ~ 1mh2o to 0 ~ 200mh2o
Type of pressure	manometer pressure
measurement accuracy	0.5%F.S, 0.25%F.S, 0.1%F.S optional
behaviour of electricity	Two wire system	Three-wire system 0 ~ 10v	three-wire system
output signal	(4～20)mA	(0～10)V	(0～5)V
Power supply	12～30Vdc	15～30Vdc	12～30Vdc
insulance	500MΩ 100Vdc
Overload pressure	3 times rated pressure
Failure pressure	5 times rated pressure
5 times rated pressure	(-20～85)℃
the protection grades	IP68
Long term stability	0.2%FS/year
Application	Water, water pump, water tank, pool water etc.
Cable material	PE vent/ PUR/ PTFE cable
