Description
Product Description

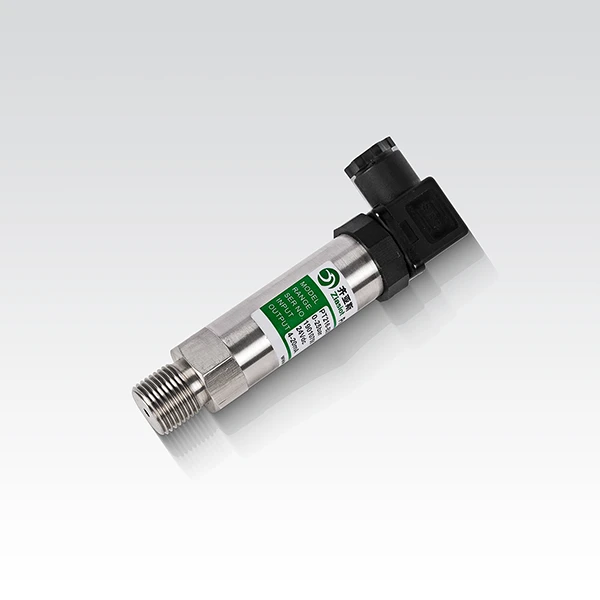

These vacuum pressure transducer from the PT210 series are reasonably priced devices made for high volume, low-cost industrial and civil pressure measurement applications.
The vacuum pressure transmitter uses imported pressure-sensitive parts, a digital compensation amplifier circuit with a microprocessor, stainless steel housing that is laser-welded and packaged, an integrated anti-radio frequency and anti-electromagnetic interference circuit, and other features that are highly accurate, dependable, compact, vibration-resistant, anti-interference, and powerful.
Customers can select from a range of mounting threads and electrical connections with this product line.
Features
Wide measuring range
Various pressure port
stainless steel structure SS304
Laser marking, exquisite shape, beautiful and meticulous
Intelligent circuit
Application Area
Because of their exceptional dependability, broad range of applications, product flexibility, and diversity, vacuum pressure transmitters are used extensively in the aviation, aerospace, petroleum, chemical, metallurgical, power, water, conservancy, and other industrial process pressure measurement and control industries.
Selecting Guide
Technical Parameters
|
Model |
PT210 Pressure Transmitter |
|
Pressure Range |
0~10 bar,0~1600bar (0-1MPa,0-160MPa) |
|
Pressure Type |
Gauge pressure/ absolute pressure /sealing pressure |
|
Pressure Sensor |
Vacuum Pressure Transmitter |
|
Isolating Diaphragm |
304 Stainless Steel |
|
Output Signal |
Two Wire 4~20mA |
|
Supply Power |
24VDC 10~30VDC |
|
Accuracy |
≤ 0.25%,0.5%F.S |
|
Working Temperature |
-20℃ ~70℃ |
|
Electrical Connection |
Direct lead,Hirschmann,Ex-Proof or Customization |
|
Process Connection |
Thread M20*1.5,G1/2''; G1/4'', 1/4''NPT,1/2''NPT or Customization |
|
Indicator |
No Display(LCD,LED screen Optional) |
|
Housing Material |
304 Stainless Steel |
|
Response Time |
≤10ms |
|
Protection Level |
IP65,IP67,IP68 |
|
Explosion Proof |
NEPSI : Ex dⅡC T6 / NEPSI : Ex iaⅡC T4 |
|
Note |
Special applications request by Customization |
