Pressure Sensor Transducer
PT210 industry smart pressure sensor transducer with different dimensions and various connectors.
Description
Product Description
This PT210 series use excellent 17-4PH materials as elastic elements and imported strain gauges. Through a high-reliability amplifier circuit and temperature compensation, the gauge pressure of the measured medium is converted into a standard voltage or current output mode. Strong interference ability,wide operating temperature range, good long-term stability etc.
Features
1. Accuracy can be 0.5% F.S./0.25% F.S
2. 0 ~ 10bar; 0 ~ 1600bar
3. Several E-connections are optional
4. Imported strain gauge
Application Area
Industrial process detection and control
Hydraulic System
Industrial machinery manufacturing
General industrial applications
Technical Parameters
|
Specification
|
Parameters
|
|
Pressure Type
|
Gauge pressure
|
|
Power Supply
|
24VDC(9~36V)
|
|
Signal Output
|
4~20mA;1~5V;0~10V;0~5V;RS485
|
|
Range
|
0~10 bar,0~1600bar (0-1MPa,0-160MPa) |
|
Accuracy
|
0.25%,0.5%
|
|
Long-Term Stability
|
±0.2%FS/year
|
|
Ingress Protection
|
IP65
|
|
Pressure Connection
|
G1/4, G1/2, 1/2NPT, 1/4NPT, M20*1.5, etc. (optional)
|
|
Measure Medium
|
Gas, water, oil, etc. (non-explosion-proof area)
|
|
Electrical Connections
|
DIN connector type, M12 connector, cable connector type
|
|
Time Response
|
≤10ms (up to 90％FS)
|
|
Housing material
|
304/316L stainless steel
|
|
Fill Fluid
|
Silicon oil
|
|
Operation conditions
|
|
|
Working Temperature
|
-20℃~85℃
|
|
MediumTemperature
|
-20℃~85℃
|
|
Storage Temperature
|
-40℃~125℃
|
|
Compensation Temperature
|
-10℃～70℃
|

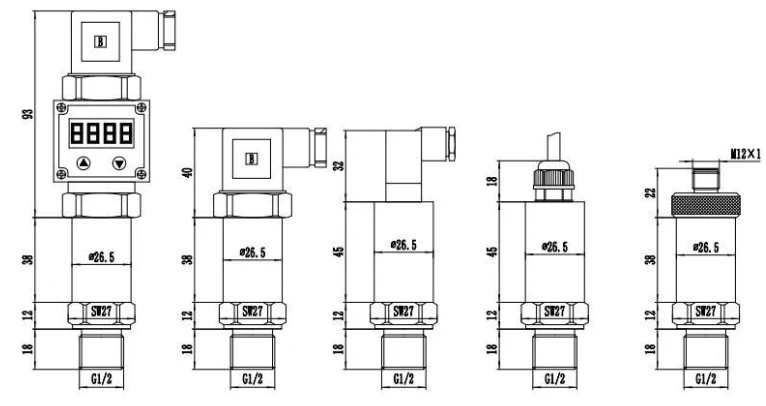

Products Dimension

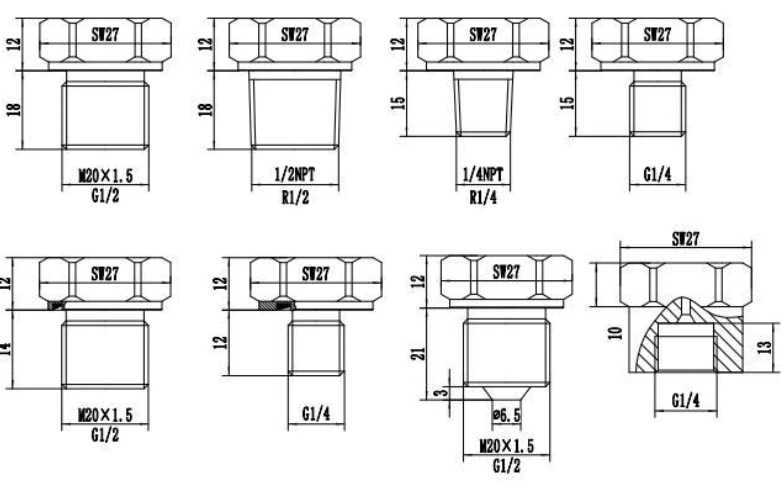

Products Process Connection
Selecting Guide
