Intrinsically Safe Pressure Transducer
Pressure Range: 0~100 bar, 0~2000 bar (0-1MPa.0-200MPa) ;
Accuracy: 0.5% F.S; 0.25% F.S;
Signal ouput: 4-20mA;
Temp.:-20～80 ℃ ;
Safe grade: ExiaⅡCT4
Description
Features
• Accuracy can be 0.25% F.S
• 4 ~ 20mA output
• Protection degree IP65
• Several threads optional
• Intrinsically safe
Application Area
• Drilling platform
• Petrochemical and natural gas control system
• Explosion-proof industrial process measurement and control

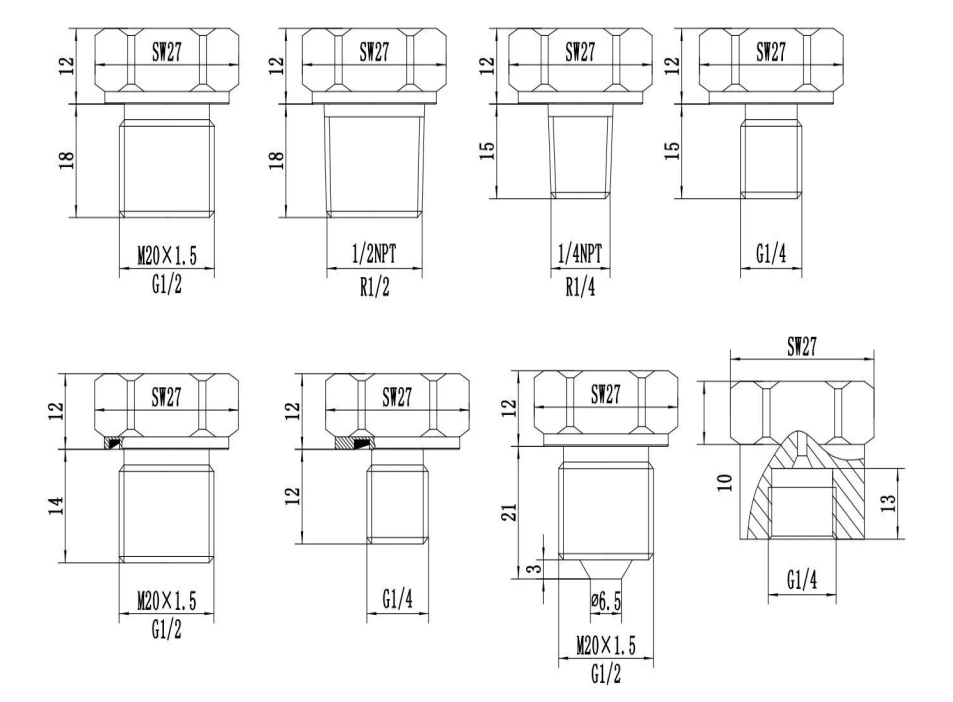

Process connection
Technical Parameters
| Pressure range | (-100 ~ 0) kPa to (0 ~ 40) MPa | |||
| Type of pressure | Gauge pressure and absolute pressure | |||
| measurement accuracy | Class 0.5, class 0.25 | |||
| output signal | (4～20)mA | |||
| Power supply | 12～30Vdc | |||
| electrical connection | Direct outgoing line | |||
| Overload pressure | 1.5 times rated pressure | |||
| Working temperature | (-20～80)℃ | |||
| the protection grades | IP65 | |||
| Intrinsically safe grade | ExiaⅡCT4 | |||
| Long term stability | 0.2%FS/year | |||
