High Temp Pressure Transducer

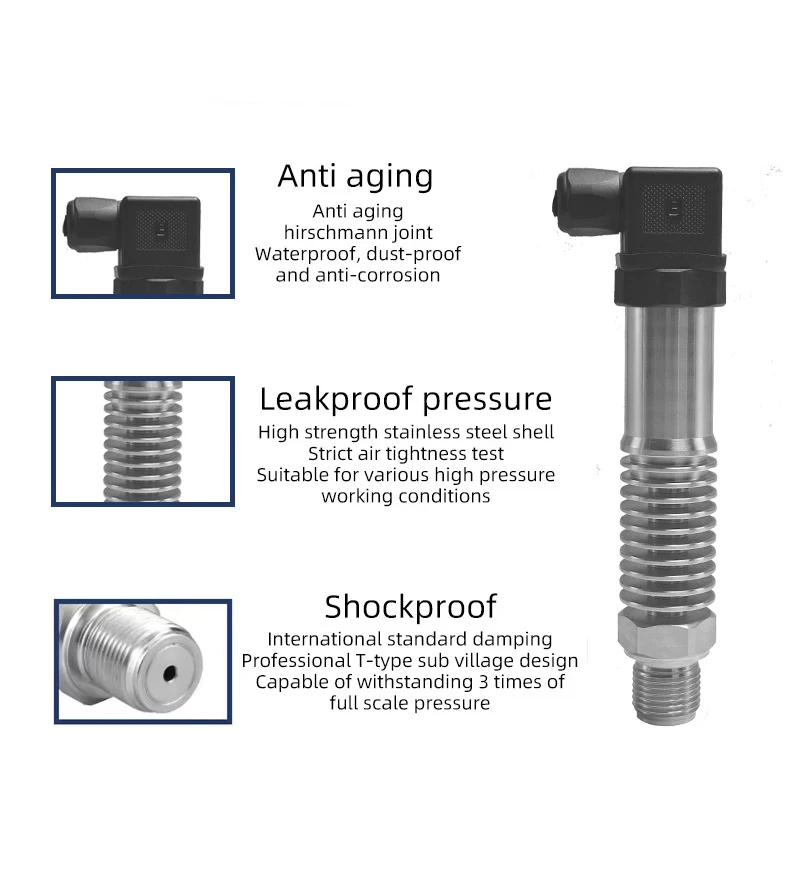

Stainless steel high temperature pressure transducer for water gas
Description
Features
The product is a high-quality stainless steel high-temperature pressure transducer, specifically designed for water and gas applications, thereby meeting the requirements of users who need to measure pressure in such environments.
1- The high-temperature pressure transducer comes with a precision of 0.5% FS, ensuring accurate readings and reliable performance in various industrial settings.
2- This high-temperature pressure transducer features a versatile output range, including 4-20mA, 0-5V, and 0-10V, catering to user preferences and system requirements.
3- This high-temperature pressure transducer is manufactured following international standards, including ISO 9001 CE certification, guaranteeing its quality and safety in various industries.
4- Customization options are available, including the selection of external threads (NPT, G, ZG, or M20x1.5), allowing users to tailor the product to their specific needs and applications.
Application Area
Measurement of high-temperature fluids such as steam and hot oil
Measurement and control of the boiler industry
Medical high-temperature and high-pressure disinfection
Products Parameters
|
Attribute |
Technical Parameters |
||
|
Pressure Range |
0~700 bar(0~70MPa) | ||
|
Accuracy |
0.5% F.S; 0.25% F.S | ||
|
Pressure Type |
Gauge pressure | ||
|
Overload Pressure |
1.5 times rated pressure | ||
|
Pressure Type |
gauge pressure |
||
|
Electrical Environmental Temp |
-20℃～ 80 ℃ |
||
|
Mechanical Shock |
100g/1msec |
||
|
Mechanical Vibration |
≤20g(15-2000Hz) |
||
|
Temperature Drift |
≤0.04% /℃ |
||
|
Compatible Medium |
all corrosive medium compatible with material1Cr18Ni9Ti and material 17-4PH |
||
|
Electrical Performance |
2-wire |
3-wire |
3-wire |
|
Output |
4-20mA |
0-10 V |
0-5V |
|
Response Time |
≤3msec |
≤10msec |
≤10msec |
|
Supply |
6.5~32Vdc | 12~32Vdc | 12~32Vdc |
|
Overload Resistance |
(U-10)/0.02Ω |
＞20KΩ |
＞20KΩ |
|
E-Connection |
M12x 1(4-pin),Hirschmann, PACK connector,water-proof connector | ||
|
Ingress Protection |
IP65 |
||
|
Pressure Connector |
G1/4,G1/2,1/4NPT,1/2NPT,M20x1.5,R1/4,R1/2,G1/4 etc | ||
