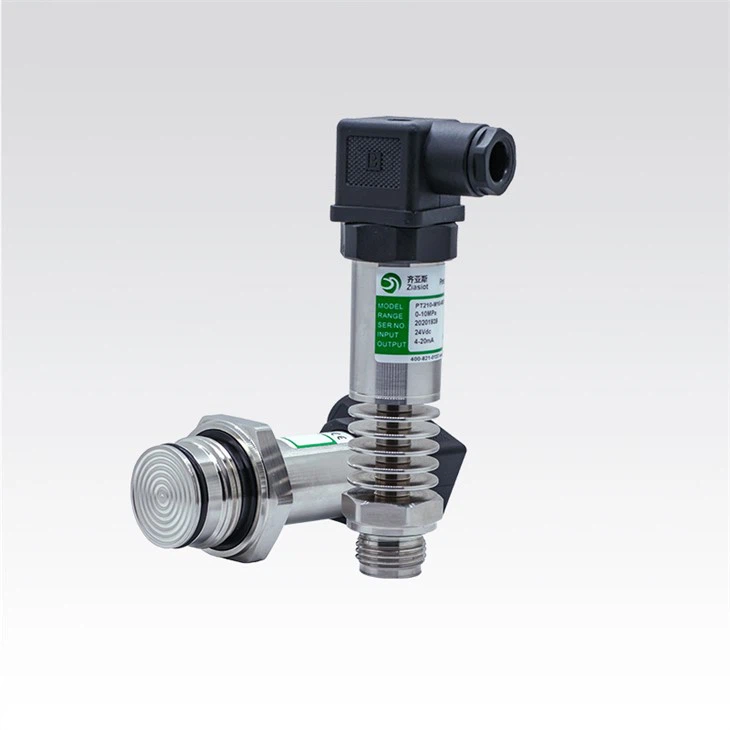

Flush Diaphragm Pressure Transducer
Features Cavitless corrugated flat film A variety of housings are available Protection level IP68 Multiple electrical connection options Sanitary surface roughness Ra < 0.38 μm can be selected Application Area Food and beverage industry Medical pharmaceutical industry biotechnology...
Description
Features
Cavitless corrugated flat film
A variety of housings are available
Protection level IP68
Multiple electrical connection options
Sanitary surface roughness Ra < 0.38 μm can be selected
Application Area
Food and beverage industry
Medical pharmaceutical industry
biotechnology
Pigment, spraying
Chemical industry and paper industry
Product Description
This series of products is a sanitary special pressure transmitter with diffused silicon pressure core as sensitive element and 316L stainless steel diaphragm isolation.This series of products has the characteristics of stainless steel welded structure, high precision, non-cavity corrugated flat film, wide measuring range and field display. Widely used in food, medicine and other health industries or fluid pressure measurement and control with particles.Product Decomposition
Application Cases
Factory Workshop
Parameters
|
Product mix |
Core Front diaphragm | Flush Diaphragm /Hygienic Type |
|
Pressure range |
-1 ~ 0 bar to 0 ~ 400 bar |
-1 ~ 0 bar to 0 ~ 40 bar (specific pressure shall not exceed PN value of pressure interface) |
|
Type of pressure |
Gauge pressure and absolute pressure |
|
|
Measurement accuracy |
Grade 0.5, Grade 0.25, Grade 0.1 |
|
|
Behaviour of electricity |
Two wire system |
|
|
Output signal |
(4～20)mA |
|
|
Power supply |
12～30Vdc |
|
|
Load resistance |
＜(U-12)/0.02 |
|
|
Electrical connection |
M12 connector, hessman, waterproof joint |
|
|
Ambient temperature |
(-40～80)℃ |
|
|
Working temperature |
Direct connection type:(-20～125)℃,Heat sink type:(-20～160)℃, |
|
|
The protection grades |
IP67 |
|
