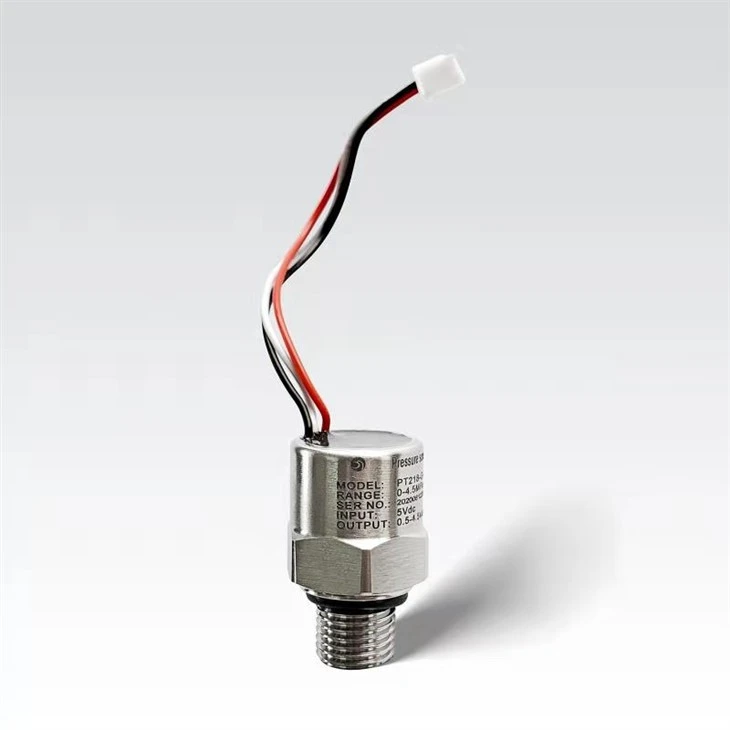

Water Pressure Sensor
Features Accuracy superior to±0.5%FS Imported high performance thick film ceramic chip Pressure range 0~10bar or 0~400bar Stainless steel encapsulation Multiple E-connections Protection Grade IP65 Compact stainless steel housing package Imported high performance thick film ceramic core...
Description
Features
Accuracy superior to±0.5%FS
Imported high performance thick film ceramic chip
Pressure range 0~10bar or 0~400bar
Stainless steel encapsulation
Multiple E-connections
Protection Grade IP65
Compact stainless steel housing package
Imported high performance thick film ceramic core
Application Area
– Pump and compressor
– Hydraulic and pneumatic system
– Energy and water treatment system
– Automatic detection system
– Agricultural equipment
– Refrigeration equipment - Freon or ammonia
Product Description
The PT218 series pressure sensor is a high reliability and durability product with large quantities and low cost OEM.It adopts the international advanced piezoresistive sensor core, and has the characteristics of all stainless steel structure, ultra-wide working temperature range and compact design.It is suitable for precise measurement and control of liquid and gas pressure in various fields
Parameters
|
Pressure range |
0～10MPa |
|||
|
Type of pressure |
manometer pressure |
|||
|
Measurement accuracy |
Grade 0.5 |
|||
|
Behaviour of electricity |
Two wire system |
Three-wire system 0 ~ 10v |
three-wire system |
three-wire system |
|
Output signal |
(4～20)mA |
(0～10)V |
(0～5)V |
(0.5～4.5)V |
|
Power supply |
6.5～32Vdc |
12～32Vdc |
10～32Vdc |
5Vdc |
|
Load resistance |
＜(U-6.5)/0.02 |
＞20k |
＞20k |
＞20k |
|
Electrical connection |
M12 connector, hessman, PACK connector, waterproof connector |
|||
|
Overload pressure |
1.5 times rated pressure |
|||
|
Working temperature |
(-40～125)℃ |
|||
|
Compensation temperature |
(0～80)℃ |
|||
|
The protection grades |
IP65 |
|||
|
Response rate |
≤10msec |
|||
|
Long term stability |
0.2%FS/year |
|||
