Pressure Transmitter Sensor
The PT216CC pressure transmitter sensor is based on the silicon piezoresistive pressure core measurement principle. Compact all-stainless steel welded structure and extremely stable electronic components make it very strong and reliable.
Description
Features
1. -0.1~0 MPa to 0~60MPa measurement range
2. Multiple output signal selection
3. Available in absolute and gauge pressure types
4. Multiple electrical interface options
5. Multiple international universal process connections
Discription:
The silicon piezoresistive pressure core measurement principle serves as the foundation for the PT216CC compact pressure transmitter sensor. It is incredibly robust and dependable due to its small, all-stainless steel welded frame and incredibly steady electronic components.
Application:
1. Hydraulic and pneumatic techniques
2. Pump and compressor
3. machine building
4. Ship and navigation

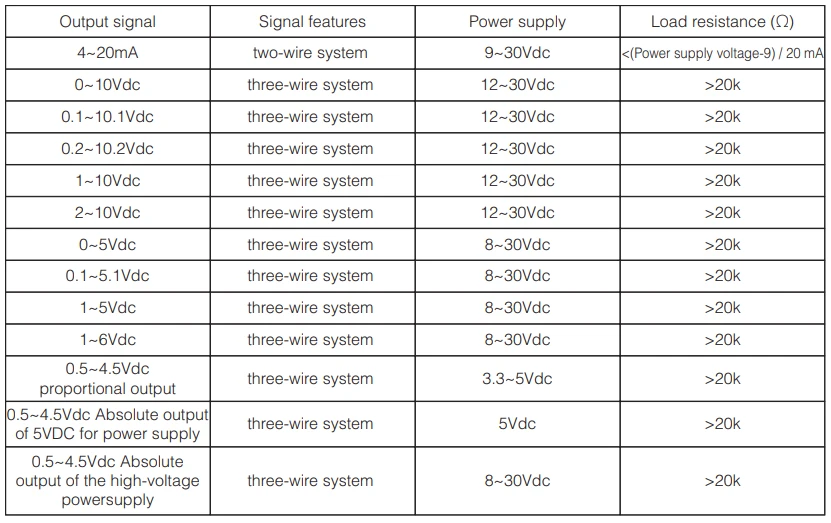

Table of output signals and performance parameters

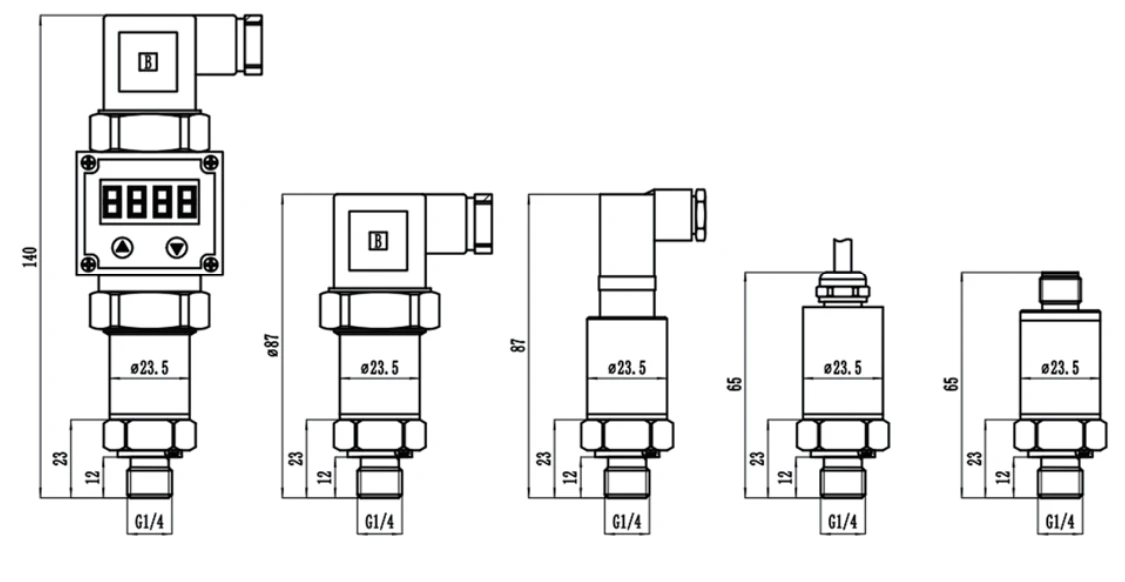

Products Dimension
