26ghz Radar Level Transmitter

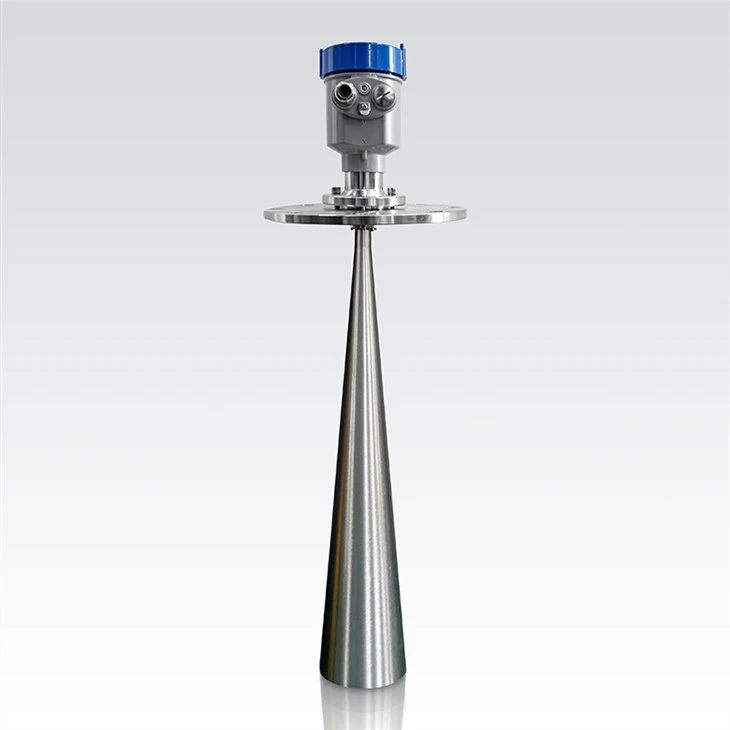

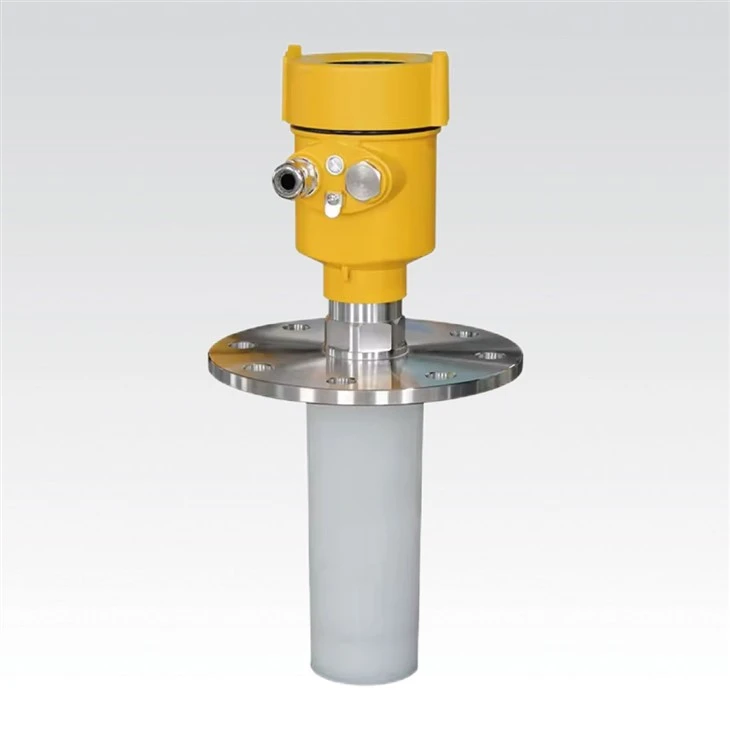

ZSRD501~ZSRD506 explosion-proof Tank Silo Bin 10m-80m contactless Radar type Level Sensor Meter Transmitter with rs485 output and alarm adopted 26G high frequency radar sensor, the maximum
measurement range can reach up to 80 meters. Antenna is optimized further processing, the
new fast microprocessors have higher speed and efficiency can be done signal analysis, the
instrumentation can be used for reactor, solid silo and very complex measurement
environment
Description
Description:
ZSRD501~ZSRD506 explosion-proof Tank Silo Bin 10m-80m contactless Radar type Level Sensor Meter Transmitter with rs485 output and alarm adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
Products Description
Product Manual
Model ：ZSRD50X SERIES
26GHz Radar Level Meter
1. Product Overview
This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
●Principle
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).
Datum measurement: Screw thread bottom or the sealing surface of the flange.
Note: Make sure the radar level meter the highest level cannot enter the measuring blind area (Figure D shown below).
●The characteristics of 26G radar level meter:
Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
Serious dust environment on the high level meter work has little effect.
A shorter wavelength, the reflection of solid surface inclination is better.
Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
The measuring range is smaller, for a measurement will yield good results.
High signal-to-noise ratio, the level fluctuation state can obtain better performance.
High frequency, measurement of solid and low dielectric constant of the best choice.
Product Introduction
Application ： All kinds of corrosive liquid Measuring Range：10 meters
Process Connection： Thread, Flange Process Temperature： -40℃~ 130℃ Process Pressure： -0.1~0.3 MPa
Accuracy： ± 5mm
Protection Grade： IP67
Frequency Range： 26GHz
Supply：2-wire(DC24V)/ 4-wire(DC24V /AC220V) Signal Output：4... 20mA /HART (2-wire / 4-wire)
RS485/ Modbus
Outer Covering ：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：Exia ⅡC T6 Ga/ Exd ⅡC T6 Gb
Application ：Slightly corrosive liquid Measuring Range：30 meters
Process Connection：Thread, Flange
Process Temperature：-40℃~ 130℃(Standard type)
-40℃~230℃(High temperature type)
Process Pressure：-0.1 ~ 4.0 MPa Accuracy： ± 3mm
Protection Grade：IP67
Frequency Range： 26GHz
Supply：2-wire(DC24V)/ 4-wire(DC24V /AC220V) Signal Output：4... 20mA /HART(2-wire / 4-wire)
RS485/ Modbus
Outer Covering ：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：Exia ⅡC T6 Ga/ Exd ⅡC T6 Gb
Application ：Corrosive liquids, vapors, volatile liquids
Measuring Range：20 meters
Process Connection：Flange
Process Temperature：-40℃~ 130℃(Standard type)
-40℃~230℃(High temperature type)
Process Pressure：-0.1~2.0 MPa Protection Grade： IP67
Accuracy： ±3mm
Frequency Range：26GHz
Supply：2-wire(DC24V)/ 4-wire(DC24V /AC220V )
Signal Output：4... 20mA /HART(2-wire / 4-wire) RS485/ Modbus
Outer Covering ：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：Exia ⅡC T6 Ga/ Exd ⅡC T6 Gb
Application ：Solid material, Strong dust
easy to crystallize, condensation occasion Measuring Range： 70 meters
Process Connection：Universal Flange
Process Temperature：-40℃~ 130℃(Standard type)
-40℃~230℃(High temperature type)
Process Pressure：-0.1~4.0 MPa (Flat flange)
-0.1~0.3MPa (Universal flange)
Protection Grade： IP67 Accuracy： ±15mm
Frequency Range：26GHz
Supply：2-wire(DC24V)/ 4-wire(DC24V /AC220V) Signal Output：4... 20mA /HART (2-wire / 4-wire)
RS485/ Modbus
Outer Covering ：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：Exia ⅡC T6 Ga/ Exd ⅡC T6 Gb
Application ：Solid material, Strong dust,
easy to crystallize, condensation occasion Measuring Range：80 meters
Process Connection：Thread, Universal Flange
Process Temperature：-40℃~ 130℃(Standard type)
-40℃~230℃(High temperature type)
Process Pressure：-0.1 ~ 0.3 MPa Measurement Accuracy： ±15mm Protection Grade：IP67
Frequency Range： 26GHz
Supply：2-wire(DC24V)/ 4-wire(DC24V /AC220V) Signal Output：4... 20mA / HART (2-wire / 4-wire )
RS485/ Modbus
Outer Covering ：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：Exia ⅡC T6 Ga /Exd ⅡC T6 Gb
Application ：Solid particles, Powder Measuring Range：30 meters
Process Connection：Thread, Flange
Process Temperature：-40℃~ 130℃(Standard type)
-40℃~230℃(High temperature type)
Process Pressure：-0.1 ~ 4.0 MPa (Flat flange)
-0.1 ~ 0.3 MPa (Universal Flange)
Accuracy：±15mm
Protection Grade：IP67
Frequency Range：26GHz
Supply：2-wire(DC24V)/ 4-wire(DC24V /AC220V) Signal Output：4... 20mA /HART (2-wire / 4-wire )
RS485/ Modbus
Outer Covering ：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：Exia ⅡC T6 Ga /Exd ⅡC T6 Gb
Application ：Hygienic liquid storage,
Corrosive container
Measuring Range：20 meters
Process Connection：Flange
Medium Temperature：-40℃~ 100℃ Process Pressure：-0.1~1.6 MPa
Accuracy：± 3mm
Protection Grade：IP67
Frequency Range：26GHz
Supply：2-wire(DC24V)/ 4-wire(DC24V /AC220V) Signal Output：4... 20mA/HART (2-wire / 4-wire )
RS485/ Modbus
Outer Covering ：Aluminum / Plastic / Stainless steel
Explosion-proof Grade：Exia ⅡC T6 Ga /Exd ⅡC T6 Gb
Technical Parameters
|
Process Connection Antenna Material The outer shell |
Thread G1½″A / Thread 1½″ NPT / Flange Stainless Steel / PTFE |
|
|
The seal between the shell and the shell cover Casing window The ground terminal |
Silicone rubber Polycarbonate Stainless steel |
|
|
The power supply voltage Two wire system The standard type (16 ~ 26) V DC Intrinsically safe (21.6 ~ 26.4) V DC Power dissipation max 22.5mA / 1W Allowable ripple - <100Hz Uss - (100～100K) Hz Uss Flameproof (22.8 ~ 26.4) V DC 2-wire system (198 ~242)V AC 4-wire system / 110V AC 4-wire system |
||
|
The cable parameters |
|
|
Cable entrance / plug |
1 M20xl.5 cable entrance 1 blind plug |
|
Terminal |
Conductor cross section 2.5mm² |
|
Output parameters |
||
|
The output signal |
(4 ~ 20) mA/RS485 |
|
|
Communication protocol |
HART |
|
|
Resolution |
1.6 μA |
|
|
Fault signal |
Constant current output; 20. 5mA 22mA 3.9mA |
|
|
The integral time |
(0 ~ 36) s, adjustable |
|
|
Blind area |
the ends of the antenna |
|
|
The maximum distance measurement |
||
|
ZSRD501 10 meters (Liquid type) |
||
|
ZSRD502 30 meters (Liquid type) |
||
|
ZSRD502T 20 meters (Liquid type) |
||
|
ZSRD503 70 meters (Solid type ) |
||
|
ZSRD504 80 meters (Solid type ) |
||
|
ZSRD505 30 meters (Solid type ) |
||
|
ZSRD506 20 meters (Liquid type) |
||
|
Microwave frequency |
26GHz |
|
|
Communication interface |
HART communication protocol |
|
|
The measurement interval |
about 1 second (depending on the parameter settings) |
|
|
Adjust the time |
about 1 second (depending on the parameter settings) |
|
|
Display resolution 1 mm |
||
|
Working storage and transportation temperature (-40～80)℃ |
||
|
Process temperature (the temperature of the antenna part) ZSRD501 (-40～130)℃ ZSRD502/ZSRD502T/ZSRD503/ZSRD504/ZSRD505 (-40～130)℃ Standard type / (- 40～230)℃ High temperature type ZSRD506 (-40～100)℃ |
||
|
Pressure |
Max.4MPa |
|
|
Seismic |
Mechanical vibration l0m/s², (10 ~ 150) Hz |
|
