Level Float Sensor
The float level switch uses magnetic force to operate and the magnetic float of the switch is used to rise or fall with the liquid level so that the reed switch chip at the set position in the sensor detection tube acts and sends out the contact opening (closing)conversion signal. Ziasiot float level switches are designed with connecting rod floats,side-mounted floats,etc. according to different application.
Description
Description

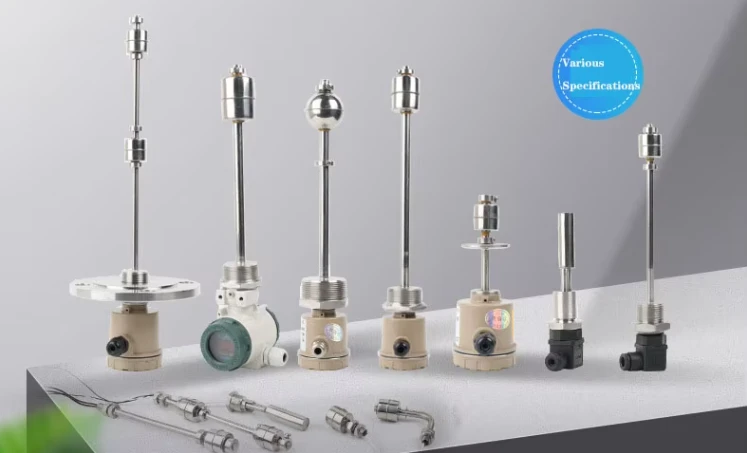

Ziasiot level float sensor is fixed in a closed stainless steel or plastic tube, one or more magnetic spring switches, and then one or more hollow and internal loop magnet float ball, using the fixed ring to fix the float ball on the tube and the position related to the magnetic switch, so that the float ball floating up and down within a certain range.
The magnet in the float ball is used to attract the contact of the magnetic spring switch, and the product is disconnected and switched on to control the liquid level.
2 The installation should be far away from the water inlet, and the wave tube should be added to the liquid with largefluctuations;
3 The liquid to be measured is crystalline, solid impurities, magnetic powder, do not use such float level meter;
features
High-Quality float level sensor is made from 304 stainless steel, ensuring durability and resistance to corrosion in harsh industrial environments.
Precise Measurement Accuracy: The float level sensor provides a measurement accuracy of 0.5%, guaranteeing reliable and precise readings in various industrial applications.
Customizable Options: The float level sensor offers customizable support for OEM (Original Equipment Manufacturer) requirements, allowing businesses to tailor the level gauge to their specific needs.
Wide Operating Temperature Range: The float level sensor can operate within a wide temperature range of -40 to 200 degrees Celsius, making it suitable for various industrial processes.
Robust Signal Output: The float level sensor features a reliable signal output of 4-20 mA/HART, ensuring seamless integration with other industrial control systems and equipment.
dimensions
Application
High, low and intermediate-level float sensor applications for tanks and other vessels
Wide range of liquids with a minimum density of 0.25 S.G.
Side mount on the vessel
Some top mounting uses a special float extension shape
