What is the resolution of a Compact Pressure Transmitter?

The resolution of a compact pressure transmitter is a critical parameter that significantly impacts its performance and suitability for various applications. As a supplier of compact pressure transmitters, understanding and communicating this concept is essential for our customers to make informed decisions.

Understanding Resolution in Pressure Transmitters

Resolution refers to the smallest change in pressure that a pressure transmitter can detect and accurately convert into an output signal. It is often expressed in units of pressure, such as pascals (Pa), pounds per square inch (psi), or bar. A high - resolution pressure transmitter can distinguish between very small pressure differences, providing more detailed and precise measurements.

For example, consider a scenario where we are monitoring the pressure in a chemical process. A small change in pressure could indicate a critical change in the reaction conditions, such as the onset of a side reaction or a blockage in the pipeline. A pressure transmitter with high resolution can detect these subtle changes, allowing operators to take timely corrective actions.

The resolution of a pressure transmitter is closely related to its analog - to - digital conversion process. Most modern compact pressure transmitters use analog sensors to measure pressure and then convert the analog signal into a digital signal for processing and output. The number of bits in the analog - to - digital converter (ADC) plays a crucial role in determining the resolution. A higher - bit ADC can represent a wider range of values with greater precision, resulting in a higher resolution.

Factors Affecting the Resolution of Compact Pressure Transmitters

Several factors can affect the resolution of compact pressure transmitters. One of the primary factors is the quality of the pressure sensor itself. High - quality sensors with low noise and high linearity can provide more accurate measurements, which in turn contribute to better resolution. For instance, sensors made from high - grade materials and with advanced manufacturing techniques tend to have better performance characteristics.

Another factor is the signal conditioning circuitry. This circuitry is responsible for amplifying, filtering, and linearizing the signal from the pressure sensor before it is sent to the ADC. A well - designed signal conditioning circuit can reduce noise and interference, improving the overall signal quality and thus the resolution of the transmitter.

The operating environment also has an impact on resolution. Temperature variations, vibration, and electromagnetic interference can all introduce errors in the pressure measurement. Compact pressure transmitters are often designed to be robust and resistant to these environmental factors, but extreme conditions can still affect their performance. For example, a large temperature change can cause the sensor material to expand or contract, leading to a shift in the measured pressure and a decrease in resolution.

Importance of Resolution in Different Applications

The importance of resolution varies depending on the application. In some applications, such as industrial process control, high resolution is crucial for maintaining product quality and process efficiency. For example, in a pharmaceutical manufacturing process, precise pressure control is necessary to ensure the correct dosage and quality of the drugs. A pressure transmitter with high resolution can accurately monitor and control the pressure, reducing the risk of product defects.

In the field of aerospace, high - resolution pressure transmitters are used for altitude and airspeed measurements. Even a small error in pressure measurement can have significant consequences for flight safety. Therefore, aerospace applications require pressure transmitters with extremely high resolution and accuracy.

On the other hand, in some less critical applications, such as simple pressure monitoring in a domestic water supply system, a lower - resolution pressure transmitter may be sufficient. These applications do not require the same level of precision, and a more cost - effective transmitter can meet the requirements.

Our Compact Pressure Transmitters and Their Resolution

As a supplier of compact pressure transmitters, we offer a range of products with different resolutions to meet the diverse needs of our customers. Our transmitters are designed with high - quality pressure sensors and advanced signal conditioning circuitry to ensure accurate and reliable measurements.

For applications that require high resolution, we recommend our Pressure Transmitter With Indicator. This transmitter features a high - bit ADC and a precision pressure sensor, providing excellent resolution and accuracy. It is suitable for industrial process control, laboratory testing, and other applications where precise pressure measurement is essential.

Our Pressure Transmitters are a versatile option for a wide range of applications. They offer a good balance between resolution, performance, and cost. These transmitters are designed to be easy to install and operate, making them a popular choice for many customers.

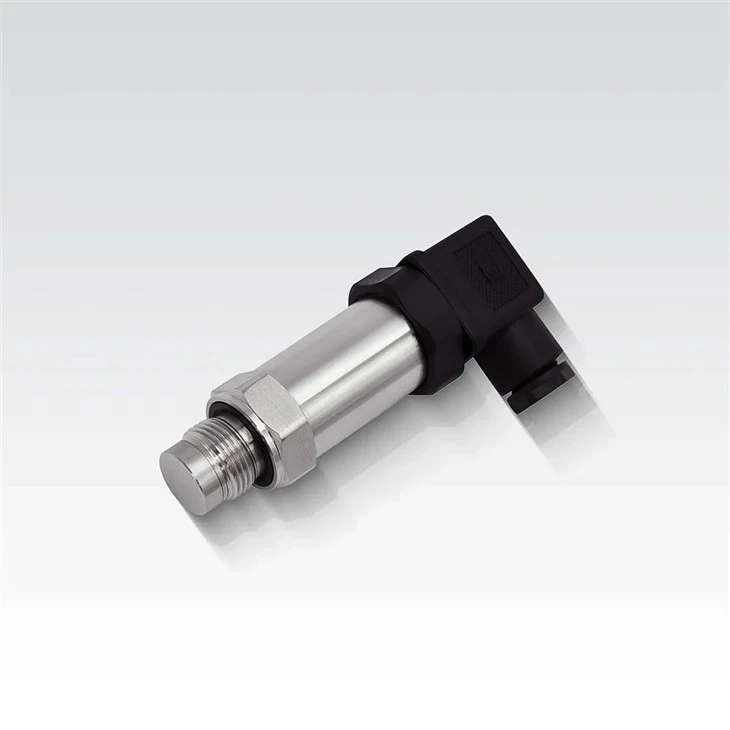

For applications where the pressure medium may contain particles or viscous substances, we offer the Flush Diaphragm Sillcon Pressure Transmitter. This transmitter has a flush diaphragm design that prevents clogging and ensures accurate pressure measurement. It also provides a suitable resolution for applications in the food and beverage, chemical, and pharmaceutical industries.

Selecting the Right Resolution for Your Application

When selecting a compact pressure transmitter, it is important to consider the specific requirements of your application. First, determine the minimum pressure change that you need to detect. This will give you an idea of the resolution required. For example, if you are monitoring a process where a pressure change of 0.1 psi is significant, you will need a transmitter with a resolution of at least 0.1 psi.

Next, consider the operating environment. If the environment is harsh, you may need a transmitter with better resistance to temperature, vibration, and electromagnetic interference. This may affect the choice of transmitter and its resolution.

Finally, consider your budget. High - resolution transmitters generally cost more than those with lower resolution. It is important to find a balance between the required resolution and the cost of the transmitter.

Contact Us for Your Pressure Transmitter Needs

If you are in the market for a compact pressure transmitter, we are here to help. Our team of experts can assist you in selecting the right transmitter with the appropriate resolution for your application. We offer high - quality products, competitive prices, and excellent customer service.

Whether you need a high - resolution transmitter for a critical industrial process or a more cost - effective option for a simple monitoring application, we have the solution for you. Contact us today to discuss your requirements and start the procurement process. We look forward to working with you to meet your pressure measurement needs.
