What Is Flat Film Sanitary Pressure Transmitter
Leave a message
How Flat Film Hygienic Pressure Transmitter Work?
Flat film industrial hygienic pressure transmitters are based on the deformation of thin film materials to measure the pressure of liquids or gases. By sensing the deformation of the thin film caused by the pressure of the medium, it is converted into a resistance change signal to achieve pressure monitoring and control.
The core component of the flat film industrial hygienic pressure transmitter is a thin film material that undergoes slight bending or deformation when subjected to external pressure. This deformation causes a change in the resistance of the thin film, usually a thin film made of metal or semiconductor is placed on a base, and when the pressure increases, the resistance of the thin film increases or decreases accordingly. Sensors determine the magnitude of external pressure by measuring the changes in these resistance values.
Flat film industrial hygienic pressure transmitter structure mainly consists of thin film sheets, bases, electrodes, and connecting wires. The thin film membrane is its core component, the base provides stable structural support, the electrodes are used to measure resistance changes, and the connecting wires transmit signals of these changes to the measuring instrument or control system. This structural design ensures that the sensor can accurately perceive and provide feedback on changes in external pressure.
Products components
In the chemical, petroleum, and electric power industries, Flat Film Hygienic Pressure Transmitters are used to monitor pressure changes in liquid and gas pipeline systems to ensure the smooth progress of the production process.
Flat Film Hygienic Pressure Transmitters are used to measure the pressure of the intake manifold of the automobile engine to ensure that the engine is in the best working condition; monitor the brake fluid pressure and the pressure in the suspension system to improve the safety performance of the car.
In medical equipment such as ventilators, sphygmomanometers, and infusion pumps, Flat Film Hygienic Pressure Transmitters are used to monitor the pressure in real-time to ensure the accurate operation of the equipment; used to measure blood and body fluid pressure to help doctors accurately diagnose the condition.
Flat Film Hygienic Pressure Transmitters are used to Monitor atmospheric pressure and wind pressure to provide accurate data support for weather forecasts and to monitor water pressure to ensure the normal operation of the water quality monitoring system.
In aircraft, spacecraft and their engines, Flat Film Hygienic Pressure Transmitters are used to monitor gas cylinder pressure, intake pressure, etc. to ensure their safe operation in extreme environments; monitor fuel pressure and oxidizer pressure to ensure the normal launch and flight of rockets.
Ziasiot Sanitary pressure transmitter

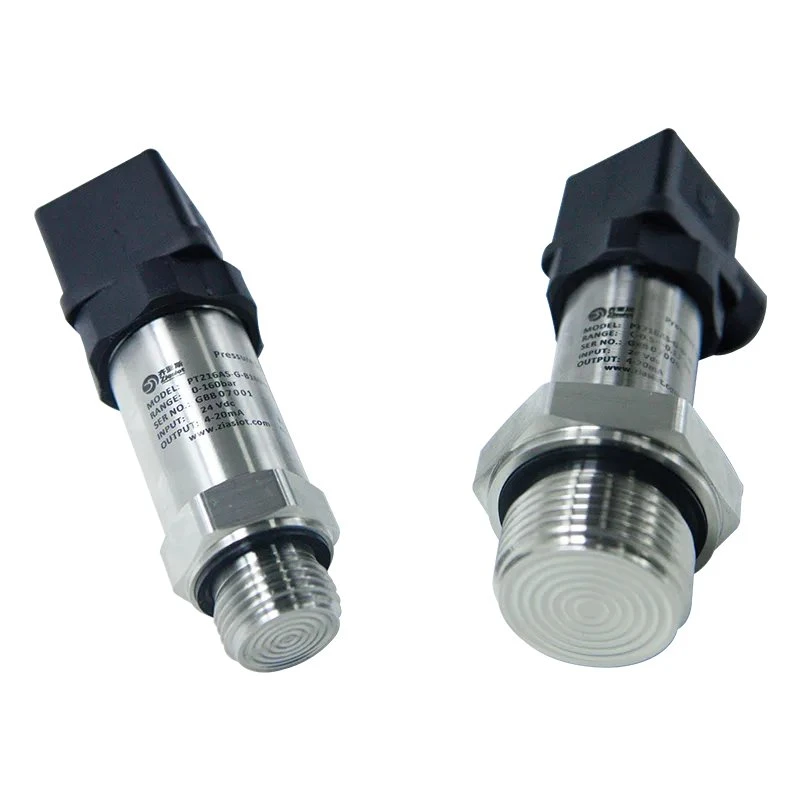

PT216AS Flat Film Hygienic Pressure Transmitter adopts a flat film that can directly receive the pressure signal. It adopts the silicon pressure core as a sensitive element and the standard silicon or olive oil as a pressure transmission medium. The measuring terminal of the product uses 316L stainless steel with a compact structure, corrosion resistance, vibration resistance and a wide range of temperature compensation. Because the exposed stress diaphragm at the end of the thread can directly receive the pressure, it can solve problems like scale formation, insanitation and blocking of viscous pressure, especially suitable for the measurement of viscous fluid and liquid level with hygienic requirements in the fields of medicine and food.
Features
.pressure interface adopts 316L flat film structure
.hygienic type, scale formation resistance
.short-circuit protection and reverse polarity protection
.with cooling fin design optional, excellent application performance for high-temperature mediums
.optional various output signal can be customized according to requirements
