80ghz Radar Level Transmitter



ZSRD80X-80GHz explosion-proof Tank Silo Bin Cement contactless Radar type Level Sensor Meter Transmitter with rs485 output and alarm adopted 76-81 GHz high-frequency radar sensor, the maximum measurement range can reach up to 120 meters. The antenna is optimized for further processing, the new fast microprocessors have higher speed and efficiency and can be done for signal analysis, and the instrumentation can be used for reactors, solid silos and very complex measurement environments.

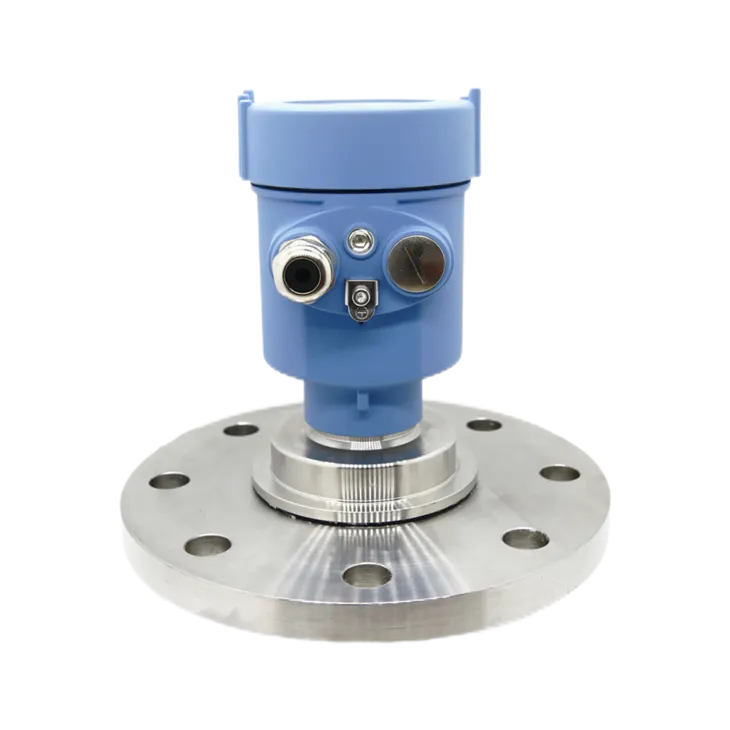

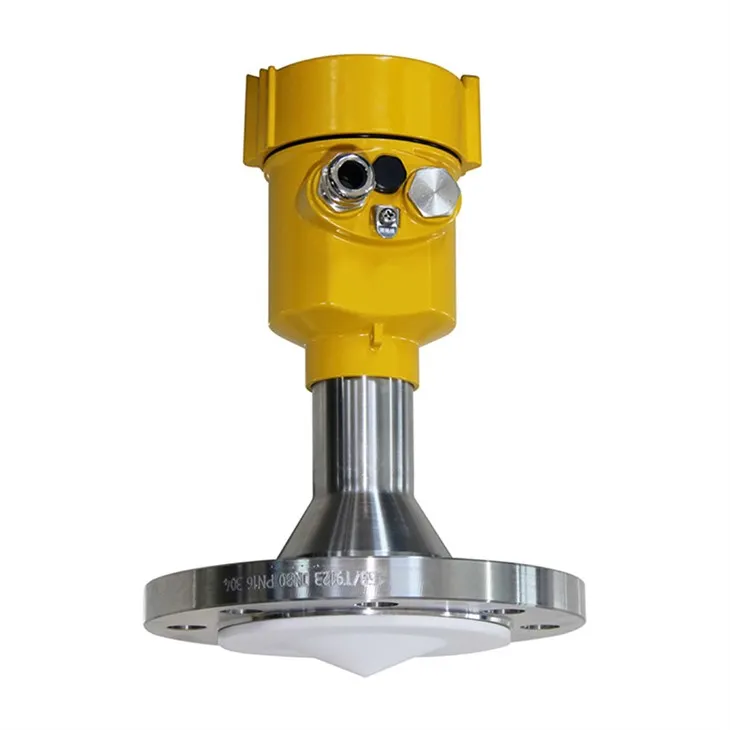

Model： ZSRD80X-80GHz Radar Tank Silo Bin Cement Level Meter Radar Level Transmitter





Frequency	76GHz ~ 81GHz, 5GHz FMCW bandwidth
Measuring range	0 ~ 120m
Measurement accuracy	±1mm
Product Name	Radar Tank Silo Bin Cement Level Meter Radar Level Transmitter
Beam angle	3°/6°
Minimum measured dielectric constant	>=2
Power Supply	15~28VDC
Signal output	4~20mA/HART,RS485
Fault output	3.8mA, 4mA, 20mA, 21mA, hold
Enclosure	Aluminum alloy, stainless steel

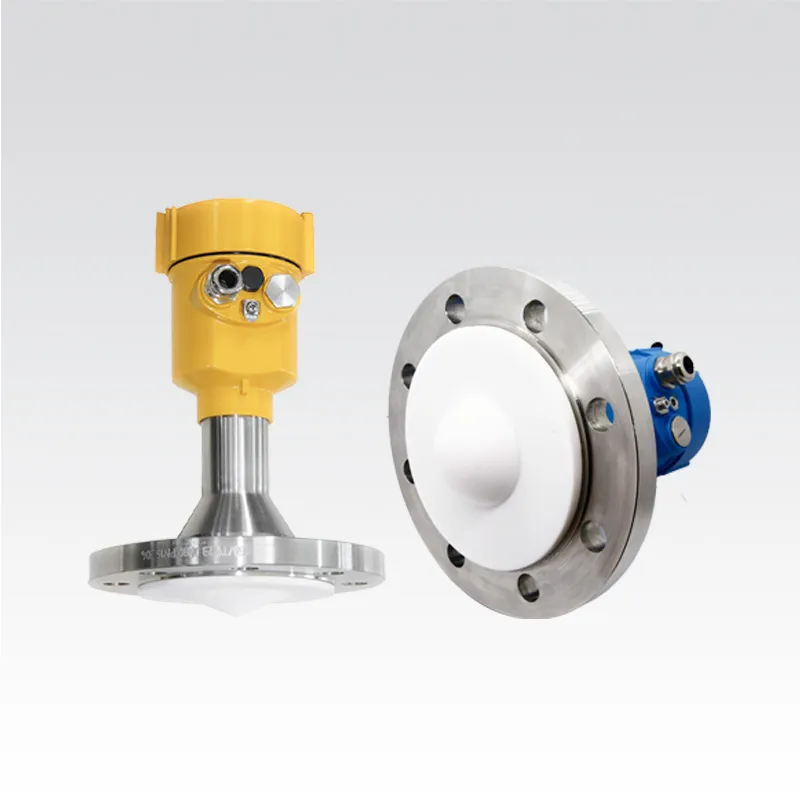

Antenna type	Lens antenna/anti-corrosive antenna/flange isolated by quartz
Temperature	-40~130℃
Process pressure	-0.1~2MPa
Product Size	Ø100*270mm
Cable entry	M20*1.5
Recommended cables	AWG18 or 0.75mm²
Protection class	IP67
Explosion-proof grade	ExdiaIICT6

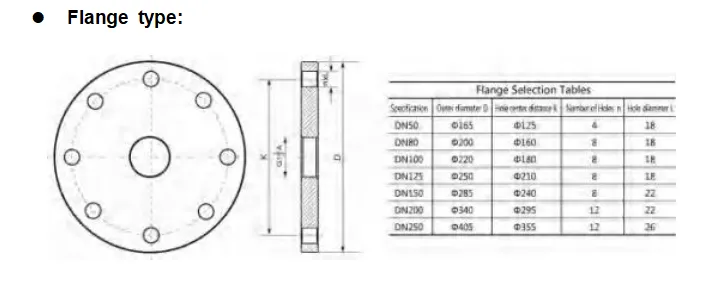

Process Connection	Thread or flange
Application	Slightly corrosive liquid, stirring, water vapor condensation, solid





Selling Units:	Single item
Single package size:	40X40X40 cm
Single gross weight:	10.000 kg

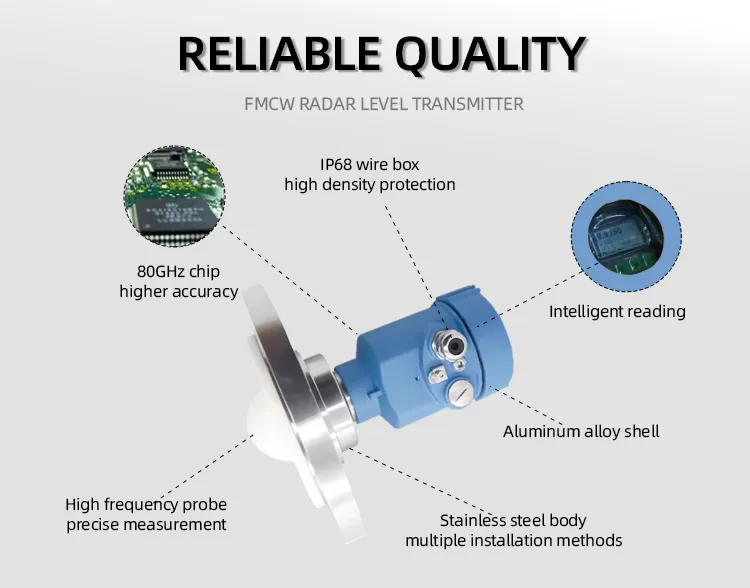

●The characteristics of 80Ghz Radar Tank Silo Bin Cement Level Meter Radar Level Transmitter:



•The electromagnetic wave emission angle is less than 3°, which is suitable for narrow space or guide wave pipeline measurement

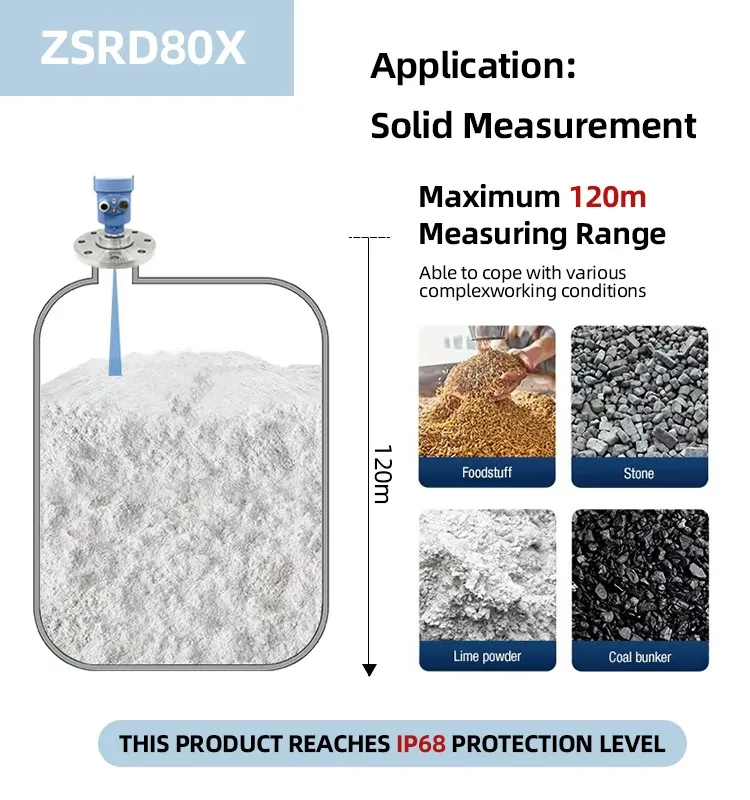

• Reach a 120M measurement range, suitable for the measurement of a very large storage tank

• Measurement blind area in 7-8CM range, suitable for small storage tanks

• Extremely high measurement accuracy, suitable for high precision measurement

• Has rich echo processing algorithm and experience data of various operating conditions, mixing and heating rod.

• Standard HART, RS485 / MODBUS bus protocol is supported

• Simple installation structure, adapted to various installation forms on site













Power Industry
The main application areas include desulfurization, lubricating oil, mud, raw coal bunker, fuel bunker, etc.

Coal industry
The main application areas include raw coal, clean coal, cinder, coal-containing sewage in coal-washing plants, etc.

Cement industry
The main application areas include slag storage silos, raw meal homogenization silos, clinker silos, cement silos, etc.

Metallurgical industry
The main application areas in the metallurgical industry include iron ore, limestone raw materials, and raw coal bunkers in
steelmaking plants; carbon powder, aluminum ore, and coal powder in aluminum plants, etc.

Petrochemical industry
The main application areas include crude oil, hydrogen tincture, waste oil, sludge in oil production plants, settling tanks,
sewage tanks, drilling mud tanks in oil fields, liquefied natural gas and condensed water in liquefied gas stations, oil storage
depots, gasoline in biodiesel plants, Diesel oil, tar, urea melt from compound fertilizer plants, ammonia water, various chemical
products from chemical plants, high temperature, high pressure, highly corrosive media, etc.

Water conservancy industry
The main application areas include lakes, rivers, open channels, wetlands, shoals, tides, underground water pipe networks, ditches containing a large amount of floating matter and sediment, places where a large amount of aquatic plants are produced, and areas prone to flash floods.
