Pressure Transmitter 4 20ma

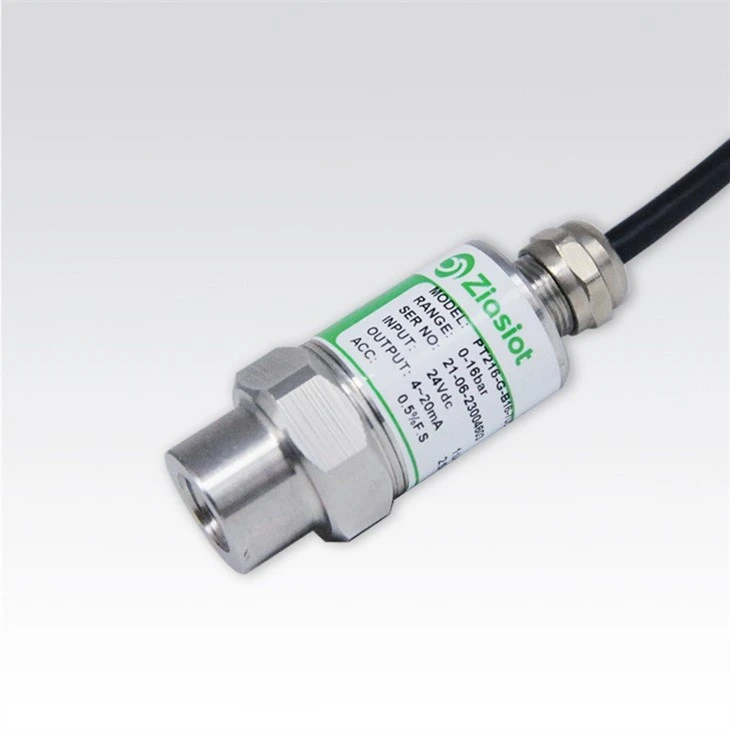

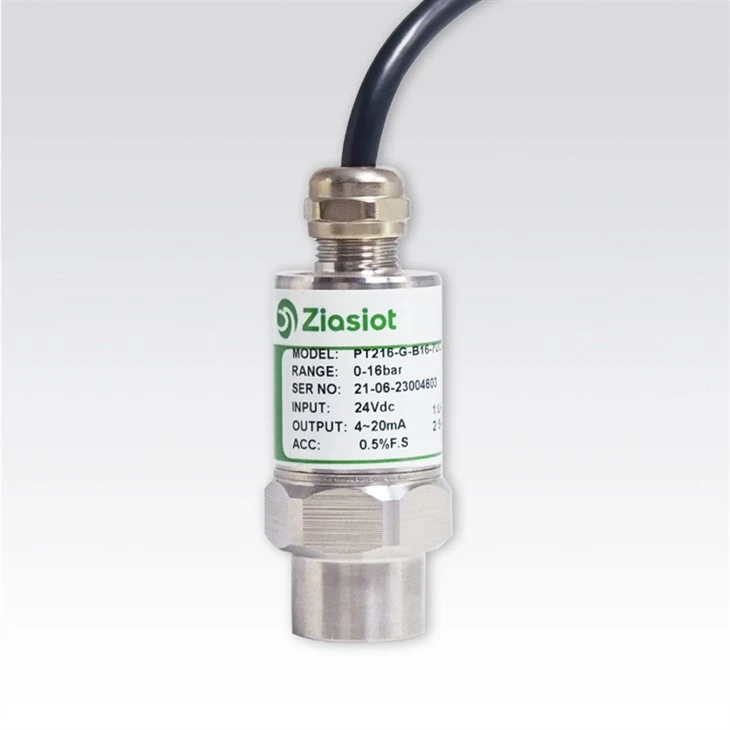

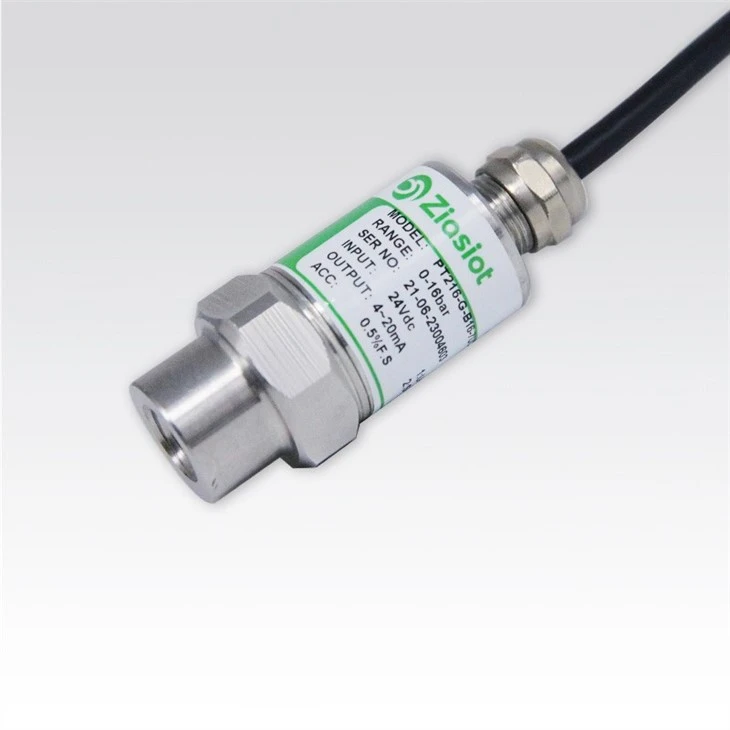

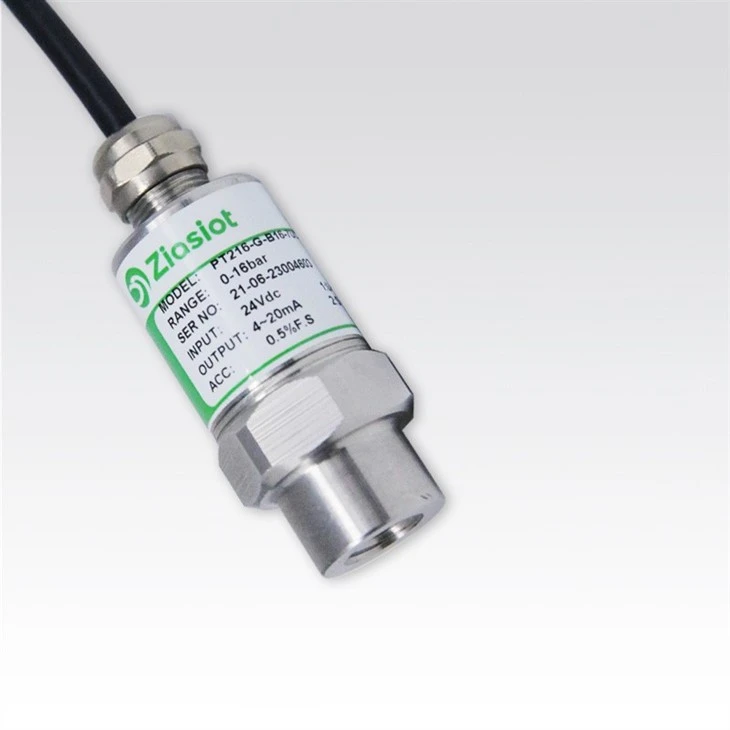

Smart OEM 4-20mA Pressure Transducer Water Oil Air Pressure Transmitter stainless steel Pressure Sensor

Send Inquiry

Download

Description

Product Description

This PT210 series pressure transmitters 4-20ma are cost-effective products designed for high volume, low cost industrial and civil pressure measurement field. The pressure sensor adopts imported pressure-sensitive components, a digital compensation amplifier circuit with the microprocessor, laser welding and packaging process of stainless steel housing, built-in anti-radio frequency and anti-electromagnetic interference circuit, with high precision, high reliability, small size, vibration resistance, anti-interference, strong ability feature and so on. This series of products offers a variety of mounting threads and electrical connections for customers to choose.

Features

one piece structure

No hidden danger of leakage

Strong overload capacity

Famous China pressure brand, unique OEM design acceptable

High stability, better than ±0.2%FS/year

Long life, withstand 100 million pressure cycles.

Application Area

Industrial process detection&control
Hydraulic System
Industrial mechinery manufacturing
General industrial applications

Technical Parameters

Structure	Gauge pressure/ absolute pressure /sealing pressure
Certification	CE, RoHS
Measurement Range	0~10 bar,0~1600bar (0-1MPa,0-160MPa)
Accuracy	0.5%F.S./0.25%F.S.
Working temperature	-20~85℃
Output signal	4~20 mA, 0~10V, 0~5V, RS485
Power supply	12~30Vdc
Electrical Connection	DIN connector type, M12 connector, cable connector type
Protection Grade	IP65
Pressure Connection	G1/4; NPT1/4; R1/4; G1/2; M101; M201.5; M12*1;
OEM & ODM Support:	Yes
MOQ	1pc
