High Temperature Digital Pressure Transmitter Transducer
Pressure Range: 0～70MPa ;
Accuracy: ±0.25%F.S;
Temp.:-20～200 ℃ ;
Signal ouput: 4～20mA,0～10V,0～5V,0.5～4.5V;
Description
Features
The measurement accuracy is better than 0.5 level.
Compact stainless steel housing package
Protection level IP65
Multiple electrical connection options
Heat dissipation structure design, can withstand medium and high temperature
Wide working temperature range
Application Area
Measurement of high temperature fluids such as steam and hot oil
Measurement and control of boiler industry
Medical high temperature and high pressure disinfection
Product Description

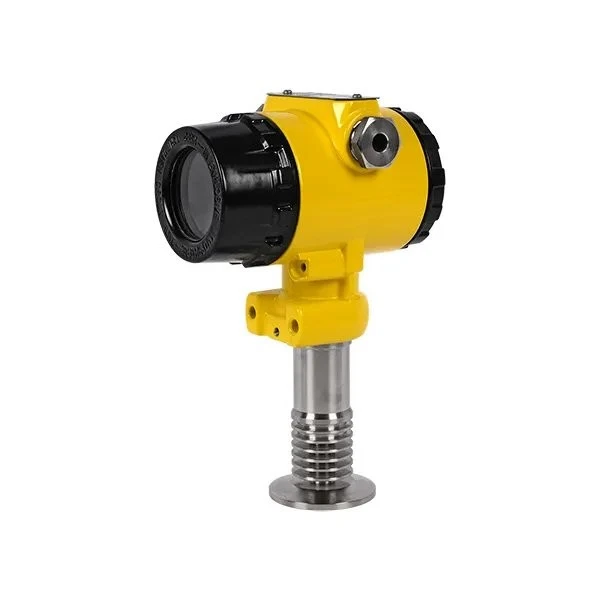

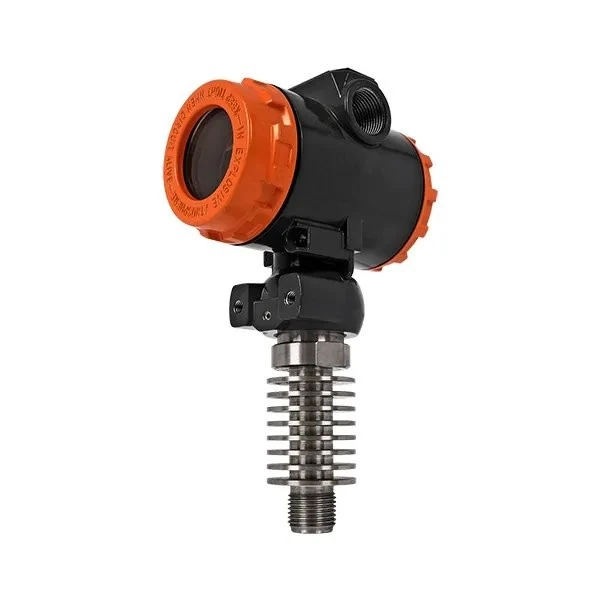

The medium and high temperature pressure transmitter is of all stainless steel structure, and the imported high temperature resistant pressure sensor is selected as the signal measurement sensitive element,The measured medium pressure is transmitted to the sensor through the heat dissipation structure on the transmitter, and the sensor probe can work stably at 200℃ for a long time,This product is widely used in the measurement and control of liquid and steam pressure in high temperature field
