Differential Pressure Sensor Hvac

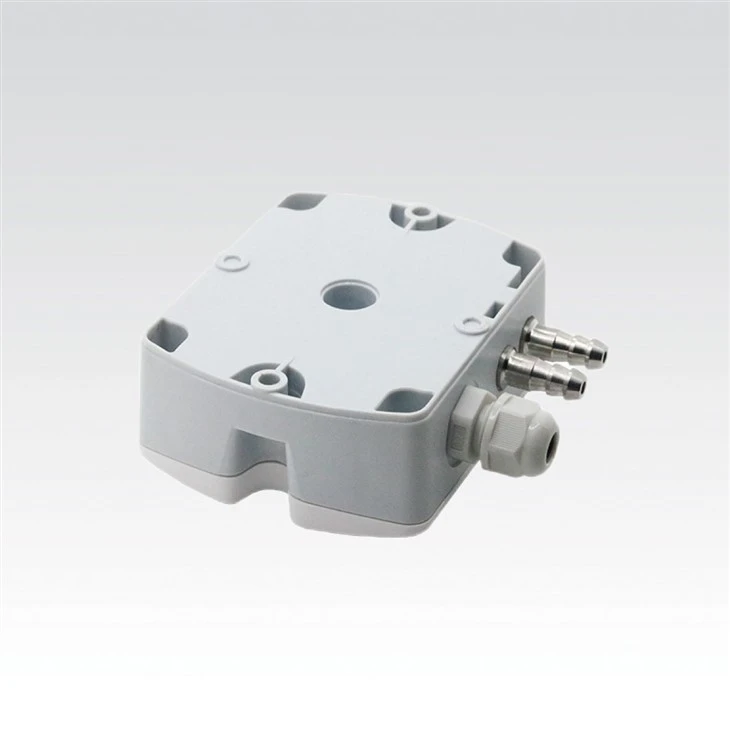

PT230BN Differential Pressure Sensor Hvac is assembled by silicon piezoresistive differential pressure core, widely used for air or neutral gas detection, and the two pressure interfaces are 6 air pipe joints, it can be directly installed on the measuring pipeline or connected through the pressure pipe

Send Inquiry

Download

Description

Features:

Use a micro-pressure core that is pressure-sensitive.

Compact size and easy installation

Wide measuring range

Wide temp. compensation, sensitive response

Description:

PT230BN Differential Pressure Sensor Hvac uses an imported high-precision, high-stability micro-pressure chip and ABS industrial plastics shell. After detecting gauge or differential pressure, it transforms the pressure differential into a proportional analog or current output signal. The range of the PT230BN differential pressure sensor is 0 to ±10000Pa.

PT230BN Differential Pressure Sensor HVAC is used in numerous industries, including HVAC, energy management systems, cleanroom pressure, smoke hood control, oven pressurization, furnace ventilation control, VAV and fan control, and others

Application:

1- Oil water differential pressure measurement, pressure detection inside pipes and vessels

2- HVAC Equipment, can be used for heating, refrigeration, and other air conditioning equipment

3- Gas alarm, gas leakage alarm device applied in lab

4- Integrated system, applied to detecting gas-integrated systems in various industries.

Specification

Type	Differential Pressure sensor
Application	Differential Pressure sensor for Air, gas
Pressure range	0~±100Pa, 0~±1,000Pa, 0~±10,000Pa
Material	ABS industrial plastics
measurement accuracy	0.5% F.S; 0.25% F.S
output signal	4~20mA, 0~10VDC, 0~5VDC,RS485
Power supply	10~30VDC,12~30VDC,16~30VDC
Overload pressure	5KPa(±100Pa),10KPa(1000Pa),80KPa(10000Pa)
Working temperature	(-20～85)℃
the protection grades	IP65
